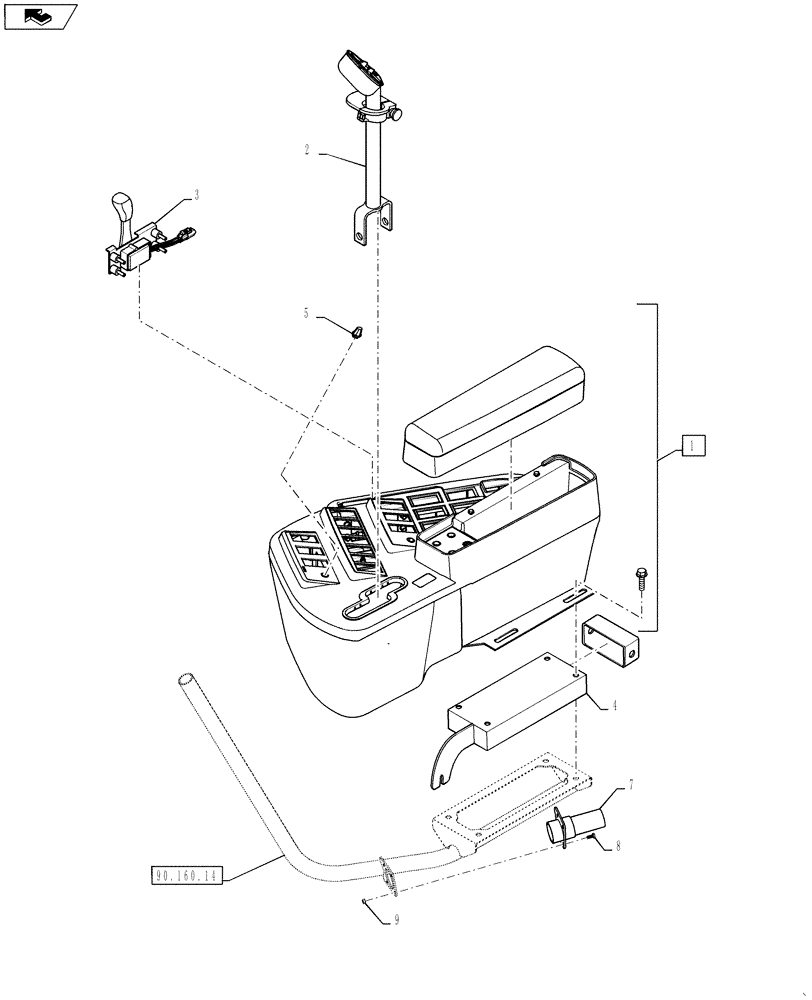

Запчасти Case IH 3330 (90.160.07) - RH CONSOLE PACKAGE - BEGIN YEAR 01/2009 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NSS

NOT SOLD SEPARAT

PACKAGE, COMPONENTS, RH CONSOLE

1шт.

2

NSS

NOT SOLD SEPARAT

PROP CONTROL LEVER ASSY, COLOR

1шт.

Refer to 55.610.02

1шт.

3

NSS

NOT SOLD SEPARAT

RH CONSOLE THROTTLE GROUP

1шт.

Refer to 55.610.01

1шт.

4

NSS

NOT SOLD SEPARAT

RH CONSOLE MOUNT ASSY

1шт.

Refer to 90.160.09

1шт.

5

NSS

NOT SOLD SEPARAT

PACKAGE, ELECTRICAL, RH CONSOLE

1шт.

6

87728471

HARNESS

RH console, hyd, not Illustrated

1шт.

7

87728474

HARNESS

product cab

1шт.

8

86599775

SCREW,M3 x 0.5 x 14.4mm OAL, Cl 4.8

4шт.

9

824-1403

NUT,M3, Cl 5

4шт.
