(90.160.05) - A-POST INSTRUMENT SHROUD, PACKAGE

Запчасти Case IH 3330 (90.160.05) - A-POST INSTRUMENT SHROUD, PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS

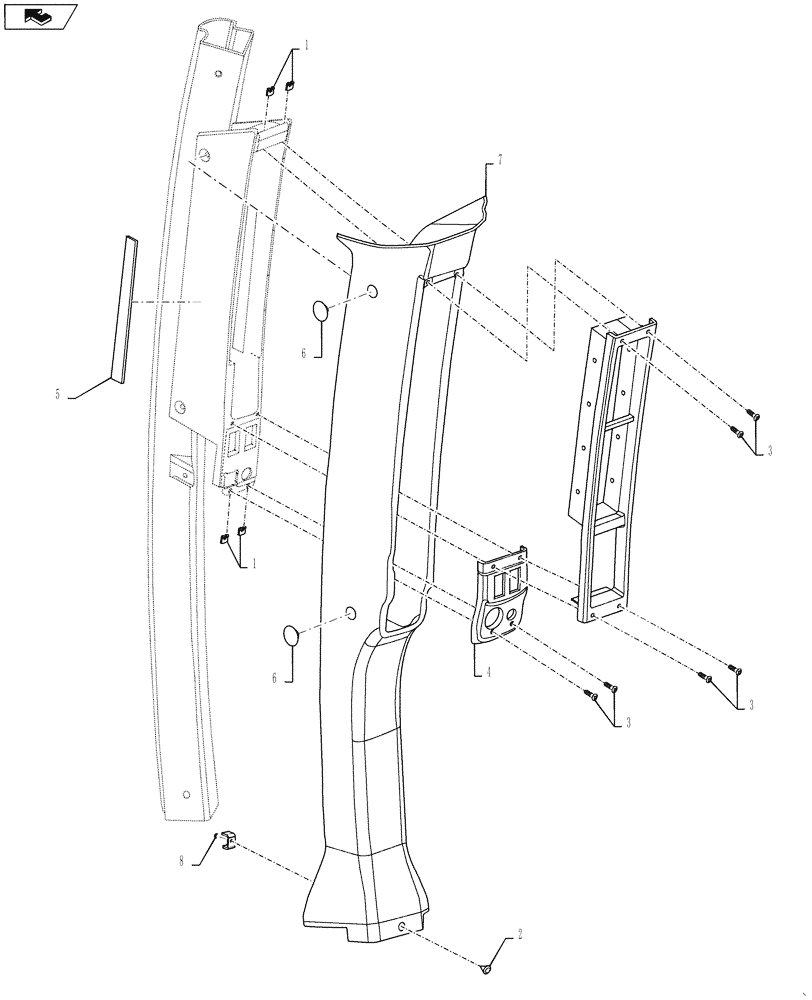

Схема запчастей Case IH 3330 - (90.160.05) - A-POST INSTRUMENT SHROUD, PACKAGE (90) - PLATFORM, CAB, BODYWORK AND DECALS
3
home
1
3
6
1
8
3
4
6
7
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

177269A1

SPRING NUT,M4.2

6шт.

2

1975782C1

SELF-TAP SCREW,Truss HD, #10 - 16 x 5/8"

1шт.

3

260-16516

SELF-TAP SCREW,Cross Pan Hd, #10 x 1"

6шт.

4

358804A1

BEZEL

LOWER RH A-POST

1шт.

5

360322A1

TAPE

DOUBLE SIDED TRIM

2шт.

6

376597A2

DECAL

hole

2шт.

7

444547A1

TRIM PANEL

COVER, RH A POST INF11763

1шт.

8

87016569

SPRING NUT,U, #10-16, Panel type

1шт.
