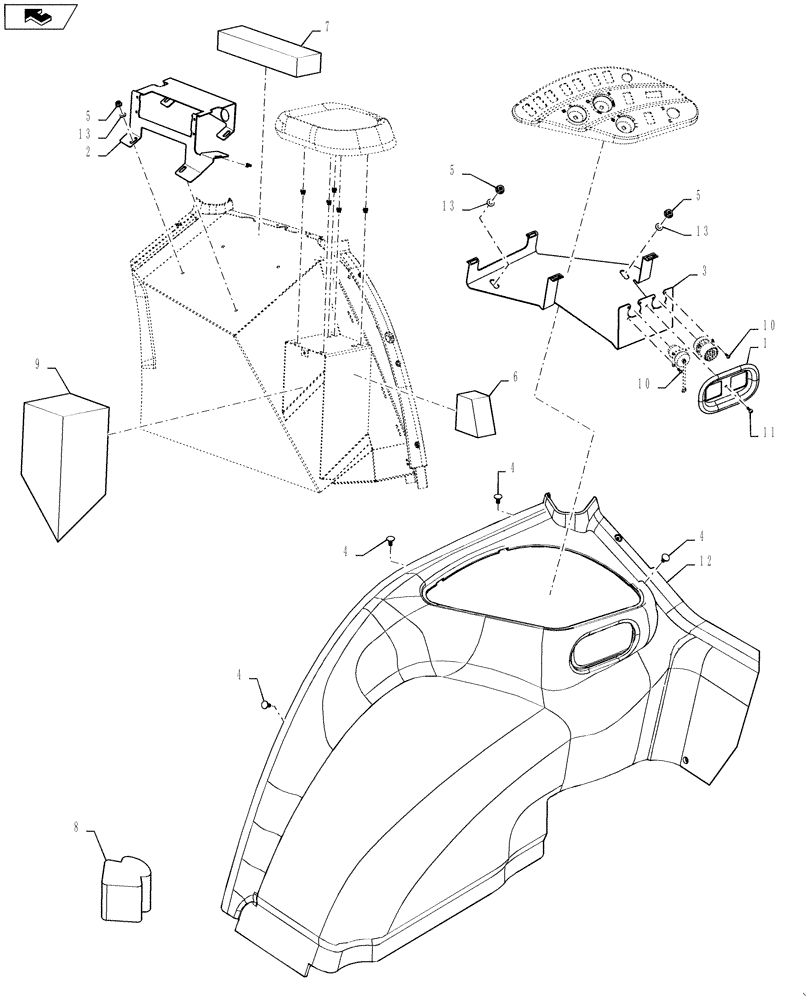

Запчасти Case IH 3330 (90.160.04[03]) - CAB TRIM, W/O CD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

428192A2

BEZEL

RH FENDER, TRIM CONNECTORS

1шт.

2

87679383

BRACKET

PAINTED, CD, CUP HOLDER MOUNTING

1шт.

3

405011A3

BRACKET

HVAC PANEL SUPPORT

1шт.

4

93199C1

FASTENER

RATCHET

15шт.

5

825-2408

FLANGE NUT,M8 x 1.25, Flg, Cl 8

7шт.

6

87421503

FOAM

PAD, LH FENDER TRIM SUPPORT

1шт.

7

336383A1

PAD

FOAM, UPPER LEFT FENDER

1шт.

8

336384A1

PAD

FOAM, RIGHT A POST

1шт.

9

336385A1

PAD

FOAM, TRAINER SEAT

1шт.

10

760-17113

SELF-TAP SCREW,Pan Hd, M3.5 x 13

8шт.

11

760-17316

SELF-TAP SCREW,Pan Hd, M4.2 x 16

1шт.

12

87444946

TRIM PANEL

RIGHT FENDER, NO LOUVER CUTOUT

1шт.

13

895-15008

WASHER,9mm ID x 20mm OD x 1.6mm Thk

7шт.
