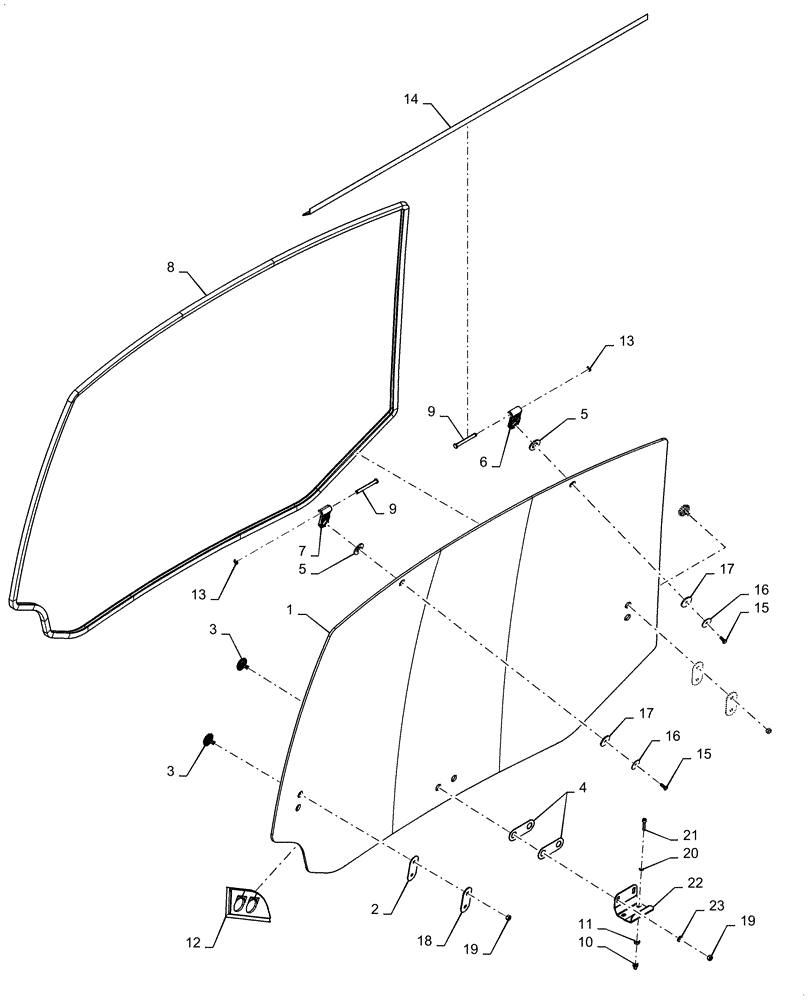

Запчасти Case IH 3330 (90.156.01) - REAR WINDOW ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87309738

GLASS,Rear Window

1шт.

2

222787A2

PAD

Clamping Plate

2шт.

3

198916A2

CAP,M8 x 20, Black

Window N8

6шт.

4

220935A3

PAD

Clamping Plate

2шт.

5

180361A2

WASHER,18mm ID x 35mm OD x 3mm Thk

2шт.

6

176245A2

HINGE

Window Rear, LH

1шт.

7

176246A2

HINGE

Window Rear, RH

1шт.

8

84160023

DOOR SEAL

Rear Window

1шт.

9

1535323C1

PIN,8mm OD x 78.5mm L

2шт.

10

322073A1

NUT

Rivnut N6

2шт.

11

87309034

SPACER

Rear Window Latch

2шт.

12

47585497

GROMMET

Implement Access

1шт.

13

800-437

CIRCLIP,M7

2шт.

14

359321A1

GUARD

Dust Protection

1шт.

15

628-6016

BOLT,Hex, M6 x 16mm, Cl 10.9, Full Thd

2шт.

16

87542959

WASHER,6.15mm ID x 30mm OD x 1.5mm Thk

2шт.

17

87325114

RUBBER WASHER

2шт.

18

87330109

PAD

Window

2шт.

19

832-46408

NUT,M8 x 1.25, Cl 8

6шт.

20

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

21

864-6030

HEX SOC SCREW,M6 x 30mm, Cl 8.8

2шт.

22

47893556

PLATE

Rear WIndow Latch

1шт.

23

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

2шт.
