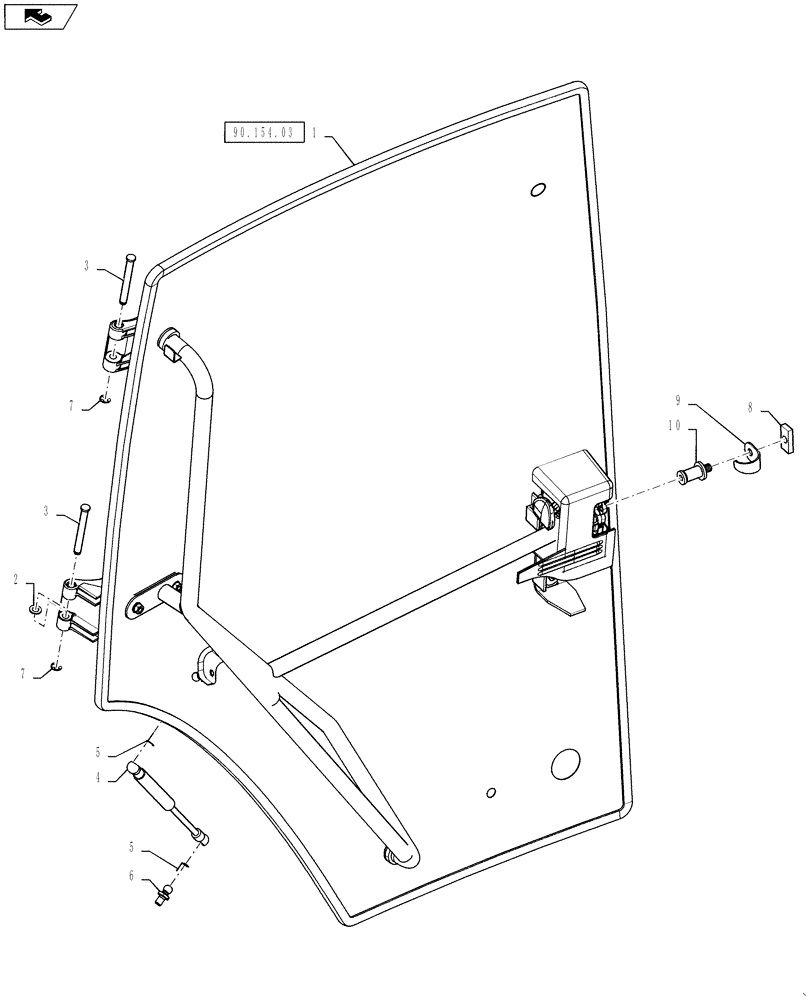

Запчасти Case IH 3330 (90.154.02) - DOOR GROUP (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

NS

NOT SERVICED

Door Assembly LH

1шт.

Refer to 90.154.03

1шт.

2

86625251

WASHER,10.5mm ID x 18mm OD x 1.6mm Thk

1шт.

3

178819A3

PIN,10mm OD x 94.55mm L

LOWER HINGE

2шт.

4

1280263C1

CYLINDER ASSY.

strut, gas

1шт.

5

9849996

CLIP

Retainer Ball Stud

2шт.

6

3234063R1

BALL STUD,M10 x 1.5

stud

1шт.

7

86979020

CIRCLIP,M9

2шт.

8

275444A1

PLATE

DOOR LATCH PIN

1шт.

9

321535A1

PROTECTOR

DOOR STRIKER

1шт.

10

321277A1

PIN,17.2mm OD x 52mm L

LOCK

1шт.
