Запчасти Case IH 3330 (90.124.07) - DELUXE AND LUXURY AIR SUSPENSION ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS

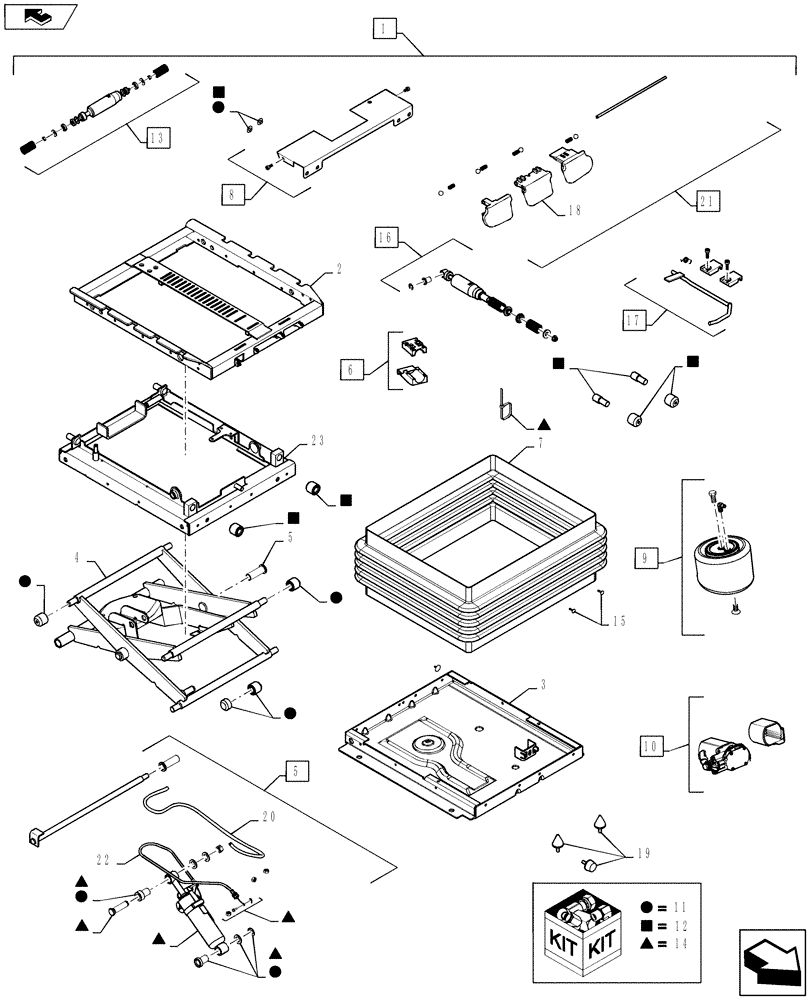

Схема запчастей Case IH 3330 - (90.124.07) - DELUXE AND LUXURY AIR SUSPENSION ASSEMBLY (90) - PLATFORM, CAB, BODYWORK AND DECALS
11
11
10
11
21
22
14
12
5
19
7
12
12
8
20
9
14
16
12
14
5
23
14
14
11
12
17
14
11
11
14
15
12
6
14
3
13
11
4
2
12
1
18
11
home

Артикул

Название

Примечание

Количество

1

84406039

SERVICE KIT

SUSPENSION, Inc. 2 - 6, 8 - 14, 16 - 23

1шт.

2

333274A2

ISOLATOR

Track, Lateral

1шт.

3

333275A1

HOUSING

Lower

1шт.

4

333276A1

ARM

Suspension

1шт.

5

302033A1

SHAFT

Bearing

1шт.

6

333296A1

SERVICE KIT

Isolator Shock Block

1шт.

7

87347943

SERVICE KIT

Seat, Boot

1шт.

8

302029A2

PLATE

Cover

1шт.

9

333279A2

KIT

Air Spring Service

1шт.

10

84392273

KIT

Compressor

1шт.

11

87347945

BEARING ASSY

Bearings, Seat Scissors Roller

1шт.

12

87347946

SERVICE KIT

Rollers, Seat Isolator

1шт.

13

87347947

SERVICE KIT

Shock Absorber, Lateral

1шт.

14

447956A1

KIT

Adjustable Shock, Black

1шт.

15

333659A1

PACKAGE,SERVICE

Button, Boot

1шт.

16

87347948

SERVICE KIT

Shock Absorber, Fore-Aft Isolator

1шт.

17

373470A2

KIT

Fore-Aft, Isolator Control, Black

1шт.

18

373473A1

PACKAGE,SERVICE

Lateral Isolator Control, Black

1шт.

19

333295A1

BUMPER

Suspension Bumper

1шт.

20

84392280

SERVICE KIT

Air Hose

1шт.

21

373469A1

PACKAGE,SERVICE

Suspension Knob, Black

1шт.

22

87347955

CABLE

Seat Adjust, Shock, Passive

1шт.

23

333273A1

HOUSING

Upper

1шт.

Выбрано товаров: 23
