(90.120.04) - PACKAGE, LUXURY TRAINER SEAT, BEGIN MODEL YEAR 2010

Запчасти Case IH 3330 (90.120.04) - PACKAGE, LUXURY TRAINER SEAT, BEGIN MODEL YEAR 2010 (90) - PLATFORM, CAB, BODYWORK AND DECALS

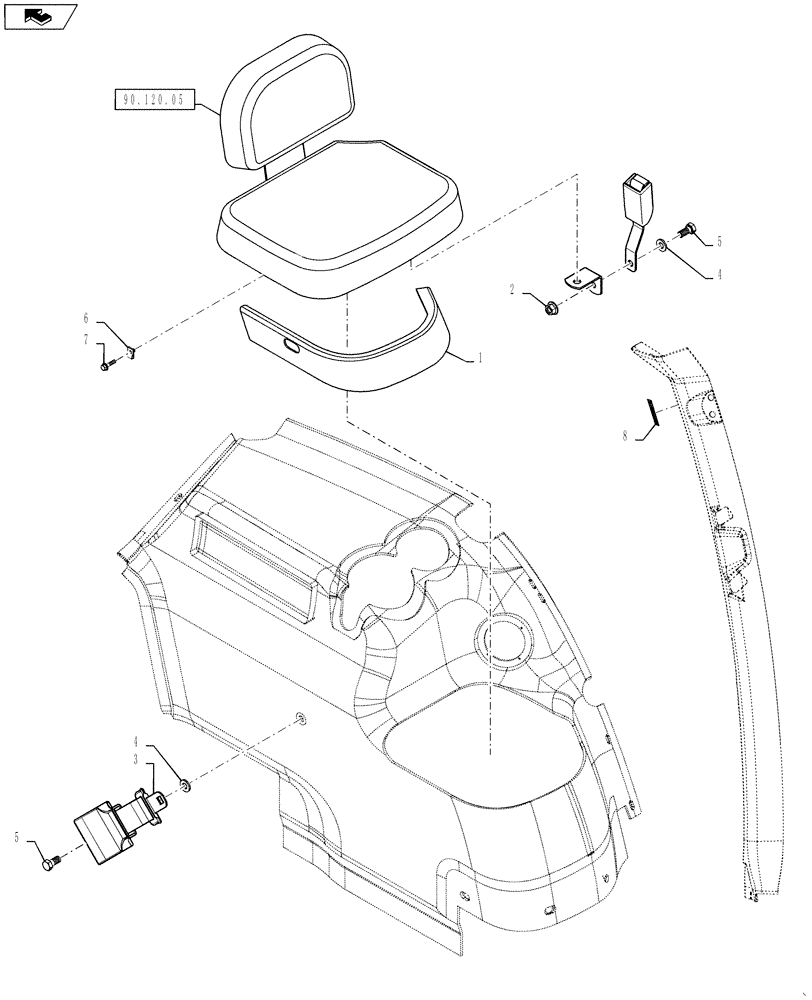

Схема запчастей Case IH 3330 - (90.120.04) - PACKAGE, LUXURY TRAINER SEAT, BEGIN MODEL YEAR 2010 (90) - PLATFORM, CAB, BODYWORK AND DECALS
4
3
90.120.05
1
7
8
5
5
2
6
home
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

359039A1

BEZEL

1шт.

2

825-51412

FLANGE NUT,M12, Flg Ser

1шт.

3

224808A1

SAFETY BELT ,48mm W x 1219mm L

1шт.

4

896-11012

WASHER,13.5mm ID x 24mm OD x 3mm Thk

2шт.

5

614-12025

BOLT,Hex, M12 x 1.75 x 25mm, Cl 8.8, Full Thd

2шт.

6

833-40306

SPRING NUT,M6, U

2шт.

7

844-6025

BOLT,Hvy Hex, M6 x 25mm, Cl 8.8

1шт.

8

410704A1

WARNING DECAL

Instructional Seat

1шт.
