(90.120.02) - TRAINING SEAT ASSEMBLY, DELUXE

Запчасти Case IH 3330 (90.120.02) - TRAINING SEAT ASSEMBLY, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS

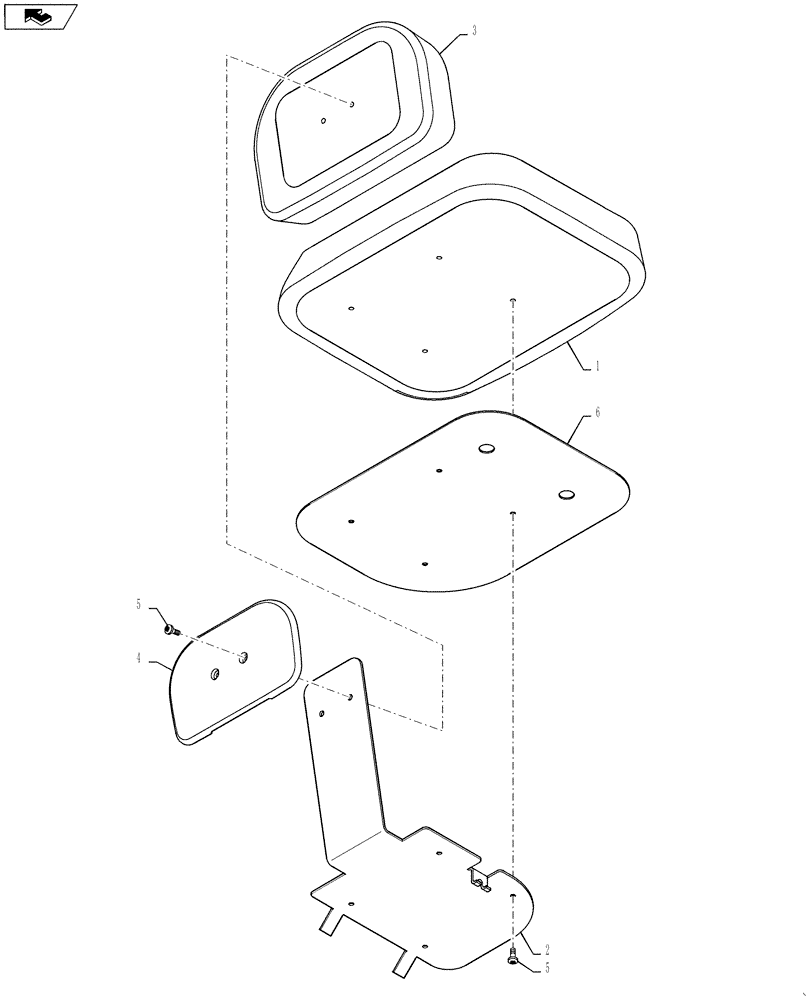

Схема запчастей Case IH 3330 - (90.120.02) - TRAINING SEAT ASSEMBLY, DELUXE (90) - PLATFORM, CAB, BODYWORK AND DECALS
home
3
1
5
4
5
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87748949

CUSHION, SEAT

STD, INSTRUCTIONAL SEAT

1шт.

2

296316A3

SUPPORT

bracket, passenger seat

1шт.

3

87748950

BACKREST COVER

STD, INSTRUCTIONAL SEAT

1шт.

4

359029A1

COVER

training back rest

1шт.

5

86585758

SCREW,Pan HD, M6 x 16mm, Cl 4.8

6шт.

6

381940A1

PANEL

seat cover, wheat

1шт.
