Запчасти Case IH 3330 (90.118.04) - CRADLE/HANDRAIL ASSEMBLY, 120’ BOOM (90) - PLATFORM, CAB, BODYWORK AND DECALS

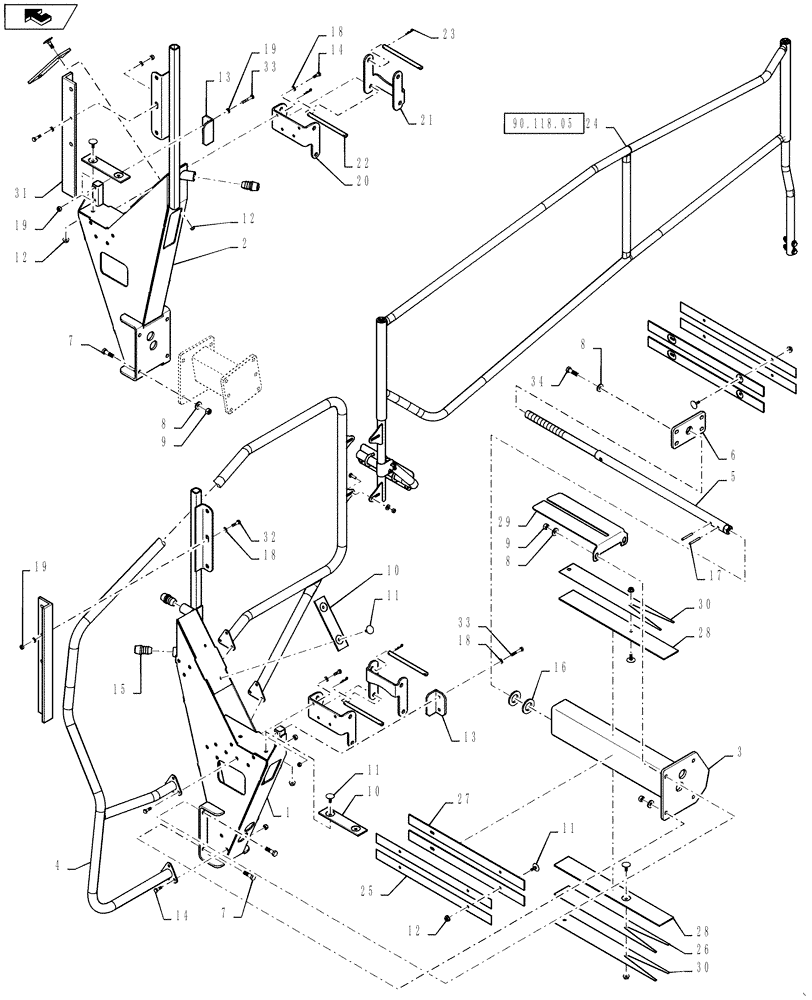

Схема запчастей Case IH 3330 - (90.118.04) - CRADLE/HANDRAIL ASSEMBLY, 120’ BOOM (90) - PLATFORM, CAB, BODYWORK AND DECALS
30
16
17
22
8
33
19
31
19
18
8
30
32
13
10
2
27
24
1
14
3
12
6
11
12
7
15
33
5
20
19
90.118.05
28
9
8
11
9
11
home
18
14
34
23
25
29
10
18
12
28
4
21
13
7
26

Артикул

Название

Примечание

Количество

1

87543913

CRADLE

BOOM, LH

1шт.

2

87543914

CRADLE

BOOM, RH

1шт.

3

87548593

BOOM EXTENSION

LH, 3320

1шт.

4

87546318

HANDRAIL

120' Boom Cradle

1шт.

5

87547170

THREADED ROD

Cradle Slide

1шт.

6

87547172

BASE PLATE

Cradle Slide

1шт.

7

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

12шт.

8

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

12шт.

9

86980516

NUT,Prev Torque, Hex, M12, 1.75 Pitch, Cl 8, DOR

8шт.

10

87270797

PAD

BOOM REST

4шт.

11

BN50779

BOLT,5/16"-18 X 1.00", EH, DOR

18шт.

12

BN50057

LOCK NUT,Lock, 5/16"-18, Stainless Steel

18шт.

13

87715010

ANGLE

Protector, Lower

8шт.

14

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

20шт.

15

363226A1

BUMPER

door

3шт.

16

87529309

WASHER,33mm ID x 56mm OD x 5mm Thk

33 x 56 x 5 mm HDN DOR

2шт.

17

87020818

LOCK PIN,1/4" OD x 2" OAL, Slotted

2шт.

18

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

18шт.

19

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

10шт.

20

87620211

BRACKET

LOWER

2шт.

21

87620212

LOCK

UPPER

2шт.

22

87620384

PIN

BOOM LOCK

4шт.

23

BN71006

COTTER PIN

1/8", #11

8шт.

24

NSS

NOT SOLD SEPARAT

GROUP

1шт.

Refer to 90.118.05

1шт.

25

87272436

SHIM

Boom Cradle Slide

4шт.

26

342580A1

SHIM

cradle liner, bottom

1шт.

27

87270958

SLIDE

BOOM CRADLE

4шт.

28

BN321038

LINER

TOP

2шт.

29

87715803

PLATE

WALKWAY

1шт.

30

87664090

SHIM

Cradle Liner, Bottom

2шт.

31

87478090

ANGLE

UPPER Protector

2шт.

32

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

6шт.

33

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

4шт.

34

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

Выбрано товаров: 35
