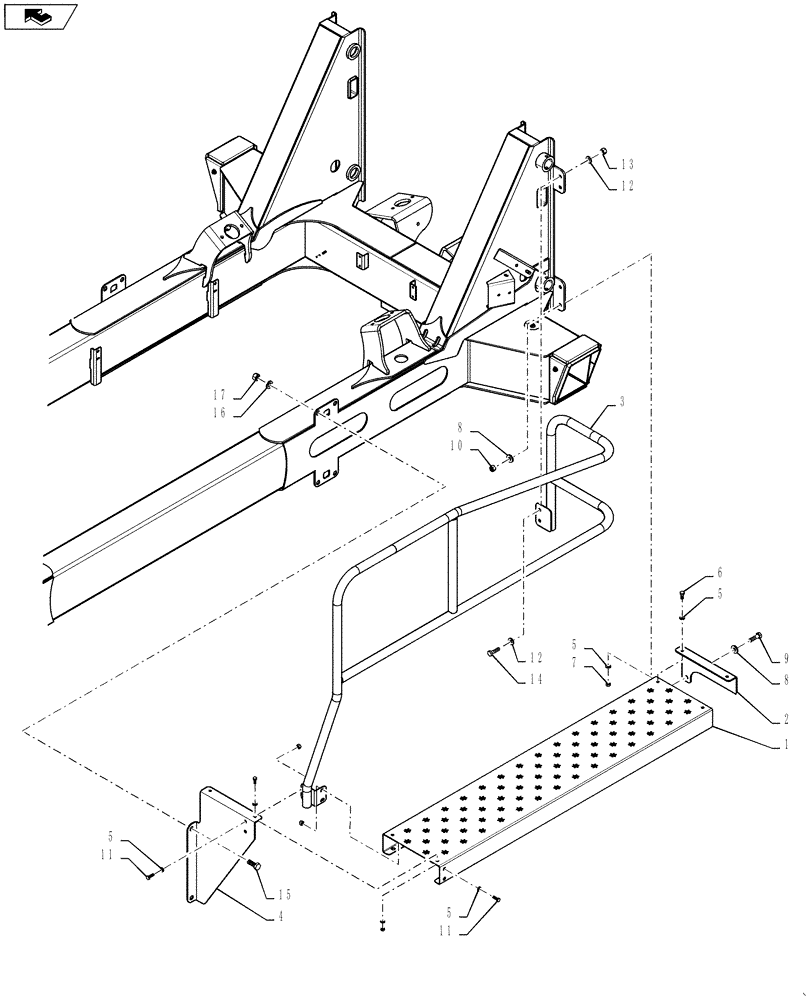

Запчасти Case IH 3330 (90.118.03) - PACKAGE, WALKWAY, REAR (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87269248

EXTENSION

Walkway, Rear

1шт.

2

87741531

MOUNT

WALKWAY SUPPORT

1шт.

3

87269247

HANDRAIL

Rear

1шт.

4

NSS

NOT SOLD SEPARAT

WELDMENT, REAR WALKWAY

1шт.

5

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

6

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

7

9991588

NUT,M8 x 1.25, Cl 8

4шт.

8

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

9

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

10

100038

NUT,M12 x 1.75, Cl 8

2шт.

11

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

4шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

14

86980401

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

2шт.

15

86980444

BOLT,Hex, M16 - 2 x 40mm, Cl 8.8, DOR

2шт.

16

87529306

WASHER,17.5mm ID x 30mm OD x 4mm Thk

17.5 x 30 x 4 mm, HDN, DOR

2шт.

17

86980517

NUT,Hex, M16 - 2, Cl 8.8, DOR

2шт.
