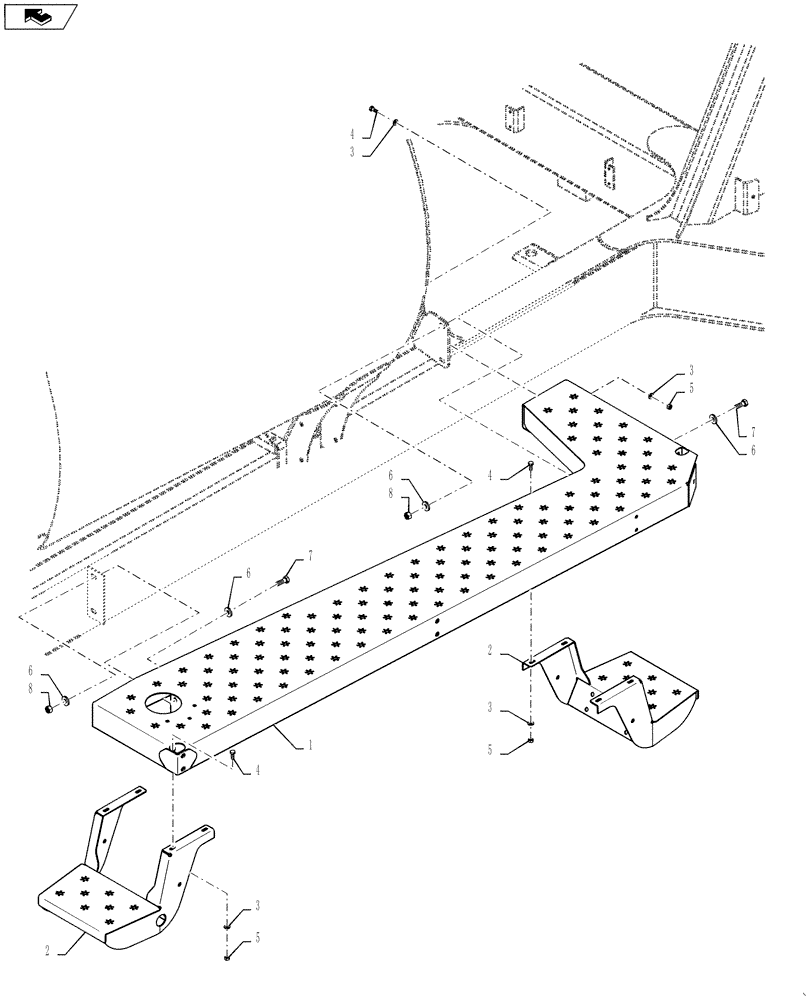

Запчасти Case IH 3330 (90.118.02) - WALKWAY GROUP, MID (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87581318

EXTENSION

Walkway, Mid

1шт.

2

87271004

STEP

Walkway, Serial Range: -Y9T026180

2шт.

2

84206008

STEP

, Start Serial: Y9T026181

2шт.

3

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

12шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

10шт.

5

9991588

NUT,M8 x 1.25, Cl 8

10шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

8шт.

7

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

4шт.

8

100038

NUT,M12 x 1.75, Cl 8

4шт.
