Запчасти Case IH 3330 (90.118.01) - WALKWAY GROUP, HAND AND TOE RAIL, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS

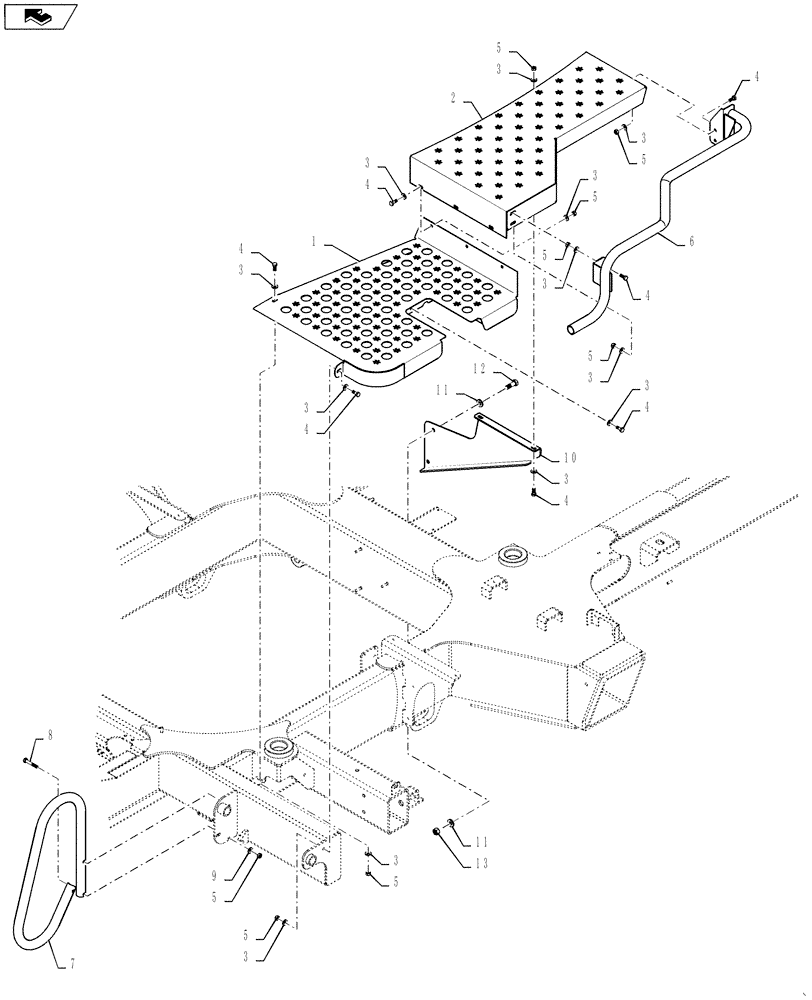

Схема запчастей Case IH 3330 - (90.118.01) - WALKWAY GROUP, HAND AND TOE RAIL, FRONT (90) - PLATFORM, CAB, BODYWORK AND DECALS
12
3
5
4
2
5
3
3
9
5
3
5
13
10
7
home
11
6
3
4
5
11
5
4
4
1
4
3
3
3
3
4
8
5
5
4
3
3
3

Артикул

Название

Примечание

Количество

1

87270661

EXTENSION

Walkway, Lower

1шт.

2

87271187

LOAD DECK

Walkway

1шт.

3

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

24шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

14шт.

5

9991588

NUT,M8 x 1.25, Cl 8

17шт.

6

84127235

RAIL ASSY.

Toe Deck

1шт.

7

84128609

HANDRAIL

Front Ladder

1шт.

8

86980385

BOLT,Hex, M8 x 1.25 x 50mm, Cl 8.8

3шт.

9

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

1шт.

10

87474251

SUPPORT

Front Walkway

1шт.

11

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

12

86980422

BOLT,Hex, M12 x 35mm, Cl 8.8

M12-1.75 X 35, HH, 8.8 DOR

2шт.

13

100038

NUT,M12 x 1.75, Cl 8

2шт.

Выбрано товаров: 13
