(90.116.05) - FENDER GROUP, RH, BSN YCT032659

Запчасти Case IH 3330 (90.116.05) - FENDER GROUP, RH, BSN YCT032659 (90) - PLATFORM, CAB, BODYWORK AND DECALS

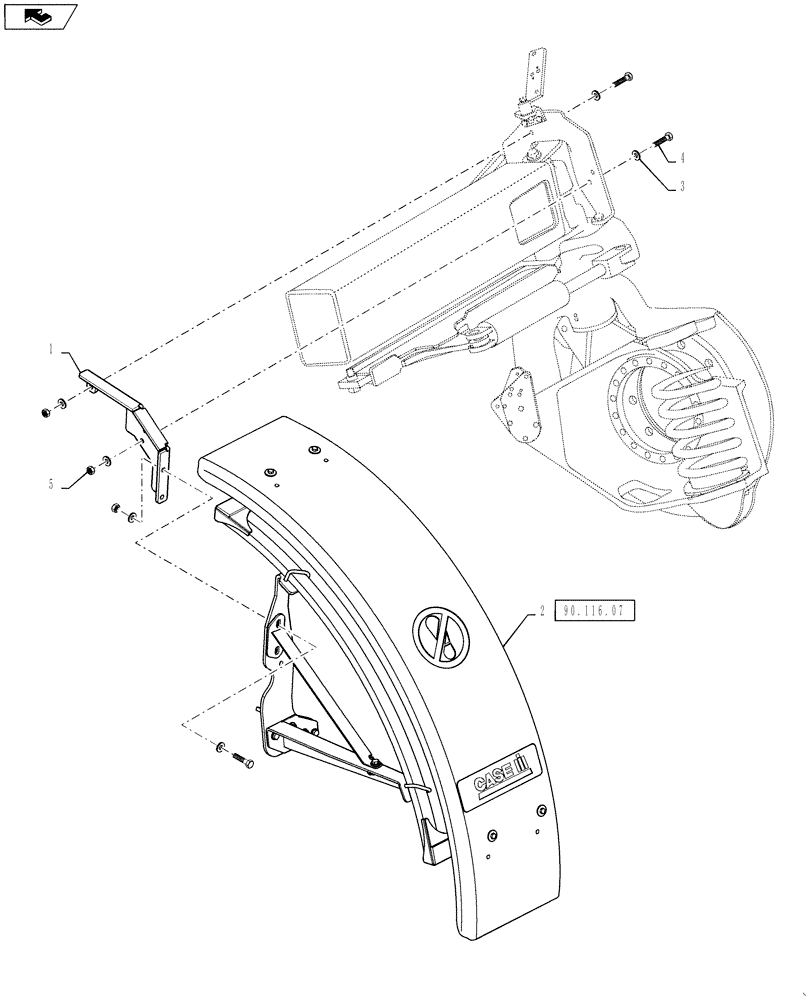

Схема запчастей Case IH 3330 - (90.116.05) - FENDER GROUP, RH, BSN YCT032659 (90) - PLATFORM, CAB, BODYWORK AND DECALS
5
1
90.116.07
home
3
4
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87267630

BRACKET

Mount, Fender, RH

1шт.

2

86986459

FENDER ASSY.

Group, RH

1шт.

Refer to 90.116.07

1шт.

3

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

6шт.

4

814-12045

BOLT,Hex, M12 x 1.75 x 45mm, Cl 8.8

3шт.

5

100038

NUT,M12 x 1.75, Cl 8

3шт.

Выбрано товаров: 0
