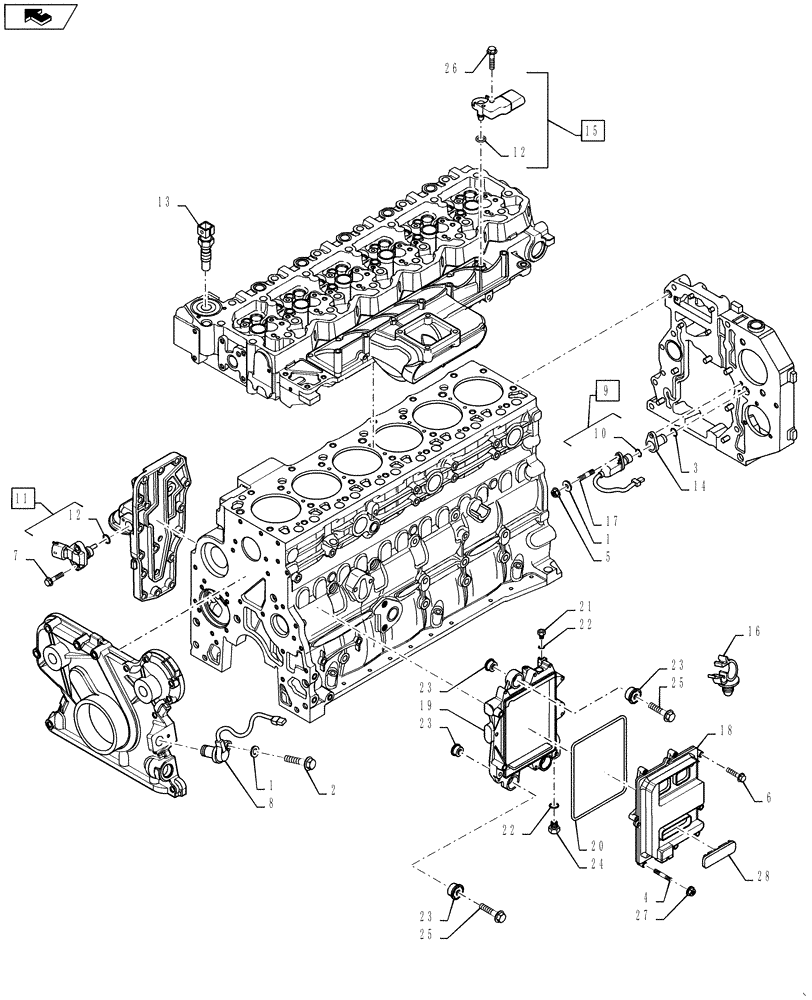

Запчасти Case IH 3330 (10.218.05) - FUEL INJECTION SYSTEM - MODULE, ENGINE CONTROL (10) - ENGINE

1

4899124

WASHER

2шт.

2

4899110

SCREW,Hex Flg, M6 x 1 x 20

1шт.

3

2852817

O-RING,1.7mm Thk x 23.5mm ID

M23.52 ID x 1.78 Thk

1шт.

4

2854593

STUD

1шт.

5

2854282

NUT,M6 x 1

Hex, M6 x 1

1шт.

6

2852818

SCREW,Hex, M6 x 1 x 30mm

M6 X 30

7шт.

7

4899110

SCREW,Hex Flg, M6 x 1 x 20

2шт.

8

4890189

SENSOR

SPEED

1шт.

9

4890190

SENSOR

ECM

1шт.

10

2852820

O-RING,0.07" Thk x 0.676" ID, 17, Cl 7, 75 Duro

17.17 X 1.78MM

1шт.

11

4890193

SENSOR

Oil Pressure & Temp.

1шт.

12

4895477

O-RING,2.62mm Thk x 13.94mm ID

2шт.

13

4897224

SENSOR

Temperature

1шт.

14

4892255

HOUSING

CONNECTOR, HYD.

1шт.

15

2852821

SENSOR

ECM; Boost/Air Temperature

1шт.

16

2852486

CABLE CLIP

1шт.

17

4895157

STUD

1шт.

18

2854594

ECU

1шт.

18

2854594R

REMAN-MODULE

Remanufactured Electronic Control Unit

1шт.

18

2854594C

CORE-MODULE

CORE-MODUL Return Number, ELECTRONIC CONTROL UNIT

1шт.

19

2854595

BRACKET

1шт.

20

2854079

GASKET,6.45mm Thk

1шт.

21

4890964

FITTING,M12 x 1.5

1шт.

22

4891385

SEALING WASHER,12.2mm ID x 15.4mm OD x 1.5mm Thk

2шт.

23

2855150

INSULATOR BLOCK

6шт.

24

4896542

HYD CONNECTOR,M12 x 1.5 ORB x 6 ORFS

1шт.

25

4899078

SCREW,Hex Flg, M8 x 1.25 x 45

3шт.

26

4895817

BOLT,Flng, M6 x 1 x 20mm, Cl 10.9

1шт.

27

4899057

FLANGE NUT,M6

1шт.

28

2852825

PLUG,100mm x 40mm L

1шт.
