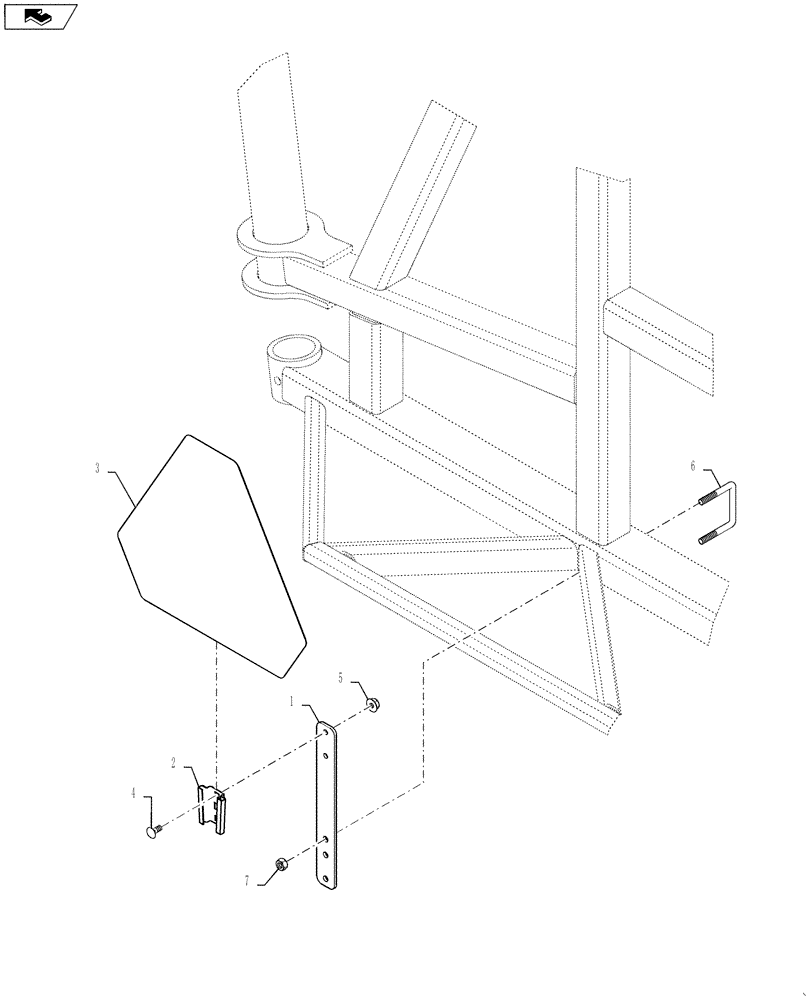

Запчасти Case IH 3330 (90.108.10) - SMV GROUP, 120 (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

87618518

MOUNT

SMV, 120' Boom

1шт.

2

847590

BRACKET

socket, female, SMV emblem

1шт.

3

A59450

WARNING SIGN

Emblem Assembly, SMV

1шт.

4

BN50222

BOLT

5/16-18 X .75

2шт.

5

87343974

NUT,Prev Torque, 3/8" - 16, Gr C, DOR

2шт.

6

87586548

U-BOLT

Square, M10 x 64 mm id x 64

1шт.

7

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.
