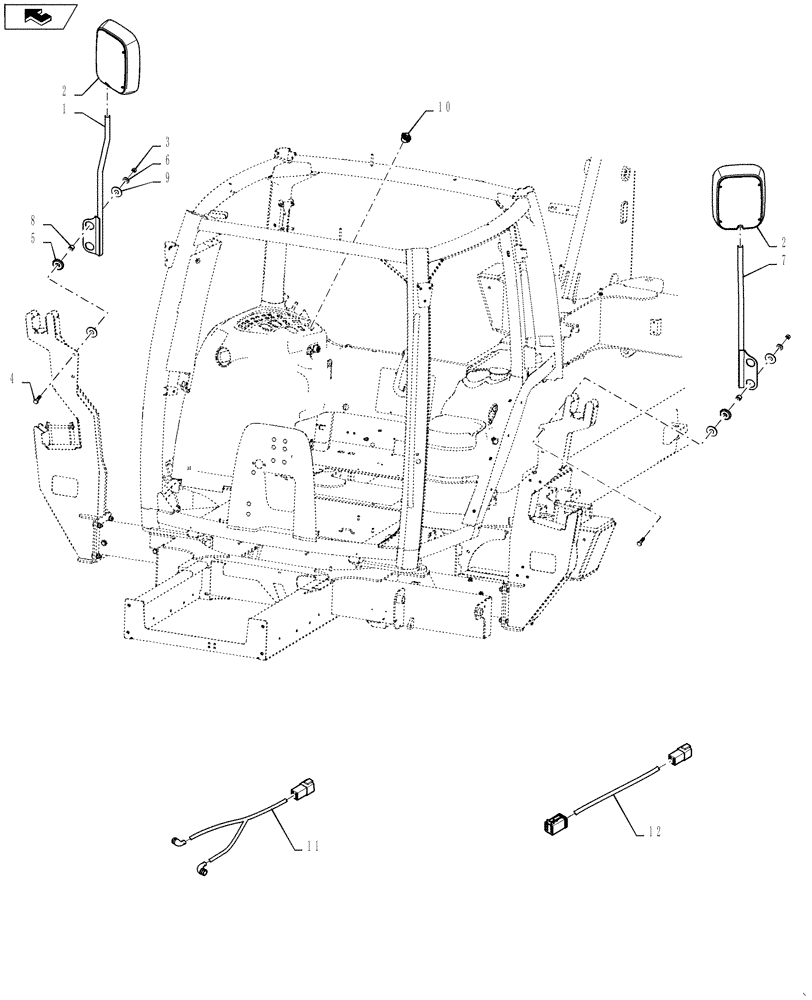

Запчасти Case IH 3330 (88.100.03) - ELECTRIC MIRROR (88) - ACCESSORIES

1

84241580

MOUNT

Mirror, RH, Start Serial: YAT028019

1шт.

84136659

MOUNT

Mirror, RH, Serial Range: -YAT028018

1шт.

2

87363066

MIRROR,238mm x 328mm

Head, Electrical

2шт.

3

100038

NUT,M12 x 1.75, Cl 8

4шт.

4

86980423

BOLT,Hex, M12 x 1.75 x 40mm, Cl 8.8, Full Thd

4шт.

5

BN320147

GROMMET

2 X 3/4 X 7/16

4шт.

6

87529310

WASHER,13.5mm ID x 28mm OD x 4mm Thk

13.5 x 28 x 4 mm, HDN, DOR

4шт.

7

84241578

MOUNT

Mirror, LH, Start Serial: YAT028019

1шт.

84136660

MOUNT

Mirror, LH, Serial Range: -YAT028018

1шт.

8

BN320164

BUSHING

Mirror Bracket

4шт.

9

BN320165

WASHER

Mirror Bracket

8шт.

10

280627A1

SWITCH, MIRROR ADJUS

power

1шт.

11

87272132

WIRE HARNESS

Mirror, LH / RH

1шт.

12

84357618

HARNESS

Mirror Extension, 300mm

1шт.
