(88.075.01) - 3" FRONT FILL DIA KIT

Запчасти Case IH 3330 (88.075.01) - 3" FRONT FILL DIA KIT (88) - ACCESSORIES

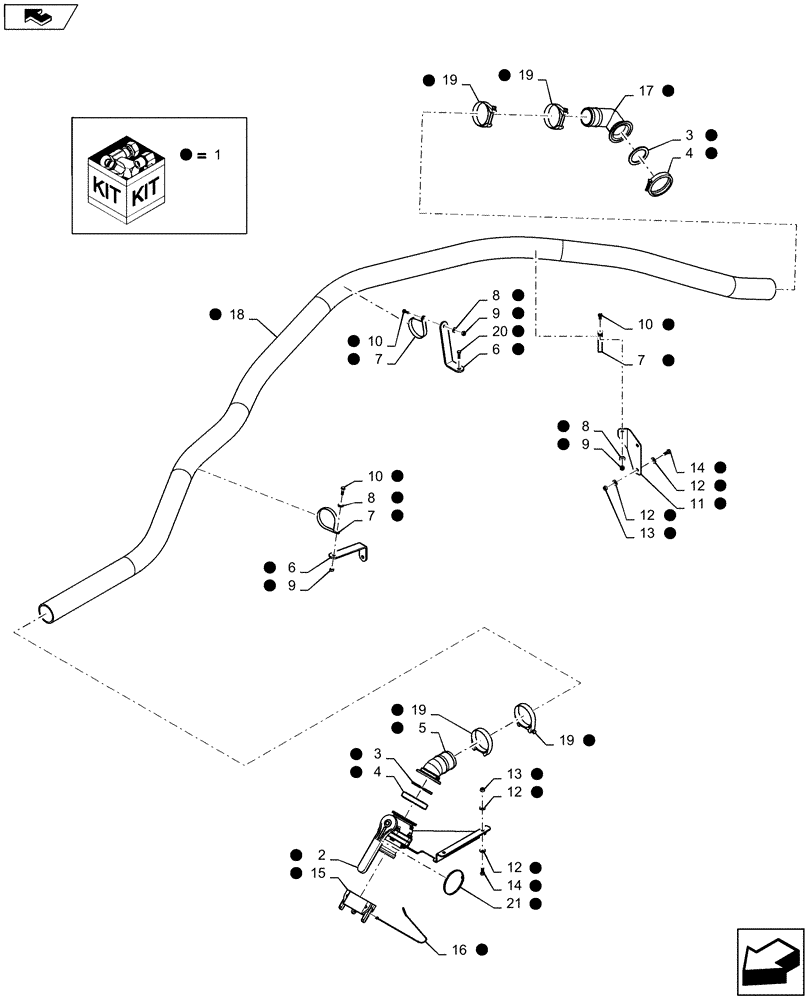

Схема запчастей Case IH 3330 - (88.075.01) - 3" FRONT FILL DIA KIT (88) - ACCESSORIES
12
1
7
13
1
2
9
1
3
1
1
8
17
1
12
1
10
1
9
11
1
1
19
7
1
1
19
1
14
1
1
19
9
1
1
18
1
1
13
4
10
20
1
1
1
16
21
1
1
3
1
8
5
1
7
8
home
15
12
6
1
14
1
1
10
1
4
1
1
1
1
1
1
12
1
1
1
6
19
1
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

47451573

SERVICE KIT

1шт.

2

47422550

MOUNT

Front Fill

1шт.

2

47421018

VALVE,3" Flange x 3" Male Adapter

3" Stubby

1шт.

2

BN50948

BOLT,Hex, 3/8" - 16 x 2 1/2", Stainless

Not Shown

2шт.

3

BN321073

GASKET,3" Flange, EPDM

2шт.

4

BN321074

CLAMP,101.6mm

2шт.

5

84283082

FITTING,3" Flange x 3" 45 Degree Hose Barb Elbow

1шт.

6

47493723

MOUNT

2шт.

7

87021162

CLAMP,88.9mm, Coat, 8.7mm Bolt Hole, P Type

3шт.

8

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

3шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

3шт.

10

86980380

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

3шт.

11

84567648

MOUNT

1шт.

12

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

8шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

14

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

15

BN2393384

CAP

1шт.

16

416624A1

ROPE

1шт.

17

BN321082

FITTING,3" Flange x 3" 90 Degree Hose Barb Elbow

1шт.

18

47449368

HOSE

1шт.

19

BN2403395

CLAMP

4шт.

20

86980381

BOLT,Hex, M8 x 1.25 x 30mm, Cl 8.8

1шт.

21

306132C1

CABLE TIE,14.5" L

1шт.
