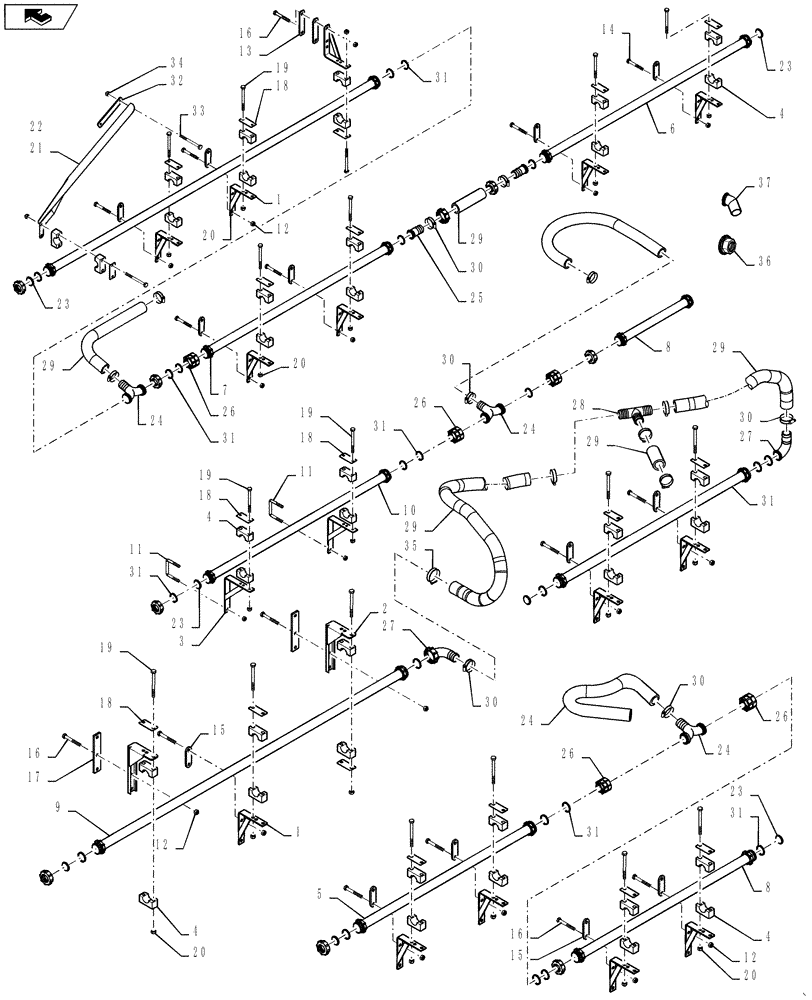

Запчасти Case IH 3330 (75.130.33) - SPRAYBAR PLUMBING, TWS, 7 SECTION, 20"/30", 120 BOOM (75) - SOIL PREPARATION

1

87484196

MOUNTING PARTS

Spraybar

28шт.

2

87707089

BRACKET, SUPPORTING

Spraybar

4шт.

3

87586920

MOUNTING PARTS

Spraybar, Center Section

4шт.

4

BN67054

CLAMP

1.315" OD

38шт.

5

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

4шт.

5a

87696872

BOOM,106" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 106" Long

4шт.

Parts of Spraybar, P/N 87696872

1шт.

Refer to 75.130.10

1шт.

6

87696868

BOOM,82" Long, 5 Holes, 20/30" Nozzle Spacing

Spraybar, 5 Nozzles, 20"/30" Nozzle Spacing, 82" Long

2шт.

6a

87696868

BOOM,82" Long, 5 Holes, 20/30" Nozzle Spacing

Spraybar, 5 Nozzles, 20"/30" Nozzle Spacing, 82" Long

2шт.

Parts of Spraybar, P/N 87696868

1шт.

Refer to 75.130.10

1шт.

7

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 85" Long

4шт.

7a

87696870

BOOM,85" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 85" Long

4шт.

Parts of Spraybar, P/N 87696870

1шт.

Refer to 75.130.10

1шт.

8

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 65" Long

3шт.

8a

87696867

BOOM,65" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 65" Long

3шт.

Parts of Spraybar, P/N 87696867

1шт.

Refer to 75.130.10

1шт.

9

87696871

BOOM,95" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 95" Long

2шт.

9a

87696871

BOOM,95" Long, 7 Holes, 20/30" Nozzle Spacing

Spraybar, 7 Nozzles, 20"/30" Nozzle Spacing, 95" Long

2шт.

Parts of Spraybar, P/N 87696871

1шт.

Refer to 75.130.10

1шт.

10

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 75" Long

1шт.

10a

87696869

BOOM,75" Long, 6 Holes, 20/30" Nozzle Spacing

Spraybar, 6 Nozzles, 20"/30" Nozzle Spacing, 75" Long

1шт.

Parts of Spraybar, P/N 87696869

1шт.

Refer to 75.130.10

1шт.

11

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

12

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

76шт.

13

87484194

PLATE

Backer, Spraybar Mount

14шт.

14

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

M10 1.5 X 100, 8.8, DOR

28шт.

15

BN308039

PLATE

Spacer

14шт.

16

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

40шт.

17

87707554

BRACKET, SUPPORTING

Backer, Spraybar

4шт.

18

BN309483

PLATE

COVER, SINGLE, SIZE 5

38шт.

19

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

76шт.

20

BN55359

LOCK NUT,1/4"-20, SS

76шт.

21

87672998

MOUNT

Spraybar, Extended, LH

1шт.

22

87672999

MOUNT

Spraybar, Extended, RH

1шт.

23

87630099

PLUG,1" SST

Flange Cap For Spraybar, Poly

14шт.

24

87630101

FITTING,Tee, PP

1-1/4" MPT x 1-1/4" MPT x 1-1/4 Hose Barb, Poly

5шт.

25

87630096

FITTING,QN Hose Shank - 1" SST X 1 1/4" Straight Shank

Straight, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

26

87630102

FITTING,Adapter Coupler Body - TWS X 1 1/4" NPT FE

Coupling, Spraybar End x 1-1/4" Female NPT, With O-Ring Flange, Poly

10шт.

27

87630097

FITTING,QN Hose Shank - 1" SST x 1 1/4" Sweep 90 Degree

Elbow, 1" Flange x 1-1/4" Hose Barb, Poly

4шт.

28

BN317579

TEE

Hose Barb, 1 1/4"

2шт.

29

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

37.59шт.

30

BN320156

HOSE CLAMP

#24, Stainless Steel

26шт.

31

84181302

SEALING RING

SEALRING Rectangular, 1 5/16" x 1 9/16" Class 5

42шт.

32

87673096

STRAP

Backer, 4 1/2” Tube

2шт.

33

86980370

BOLT,Hex, M6 x 90mm, Cl 8.8

M6-1 X 90, 8.8, DOR

4шт.

34

353308

NUT,M6 x 1.0, Cl 8

4шт.

35

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

36

87630100

REDUCER FITTING,QN 1" SST x 3/4" NPT FE Adapter

1шт.

37

87630098

45 ELBOW,QN Hose Shank - 1" SST x 1 1/4" Sweep 45 Degree

1шт.
