Запчасти Case IH 3330 (75.130.31[02]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 5 SECTION, 90 BOOM, SN YBT031520 AND AFTER (75) - SOIL PREPARATION

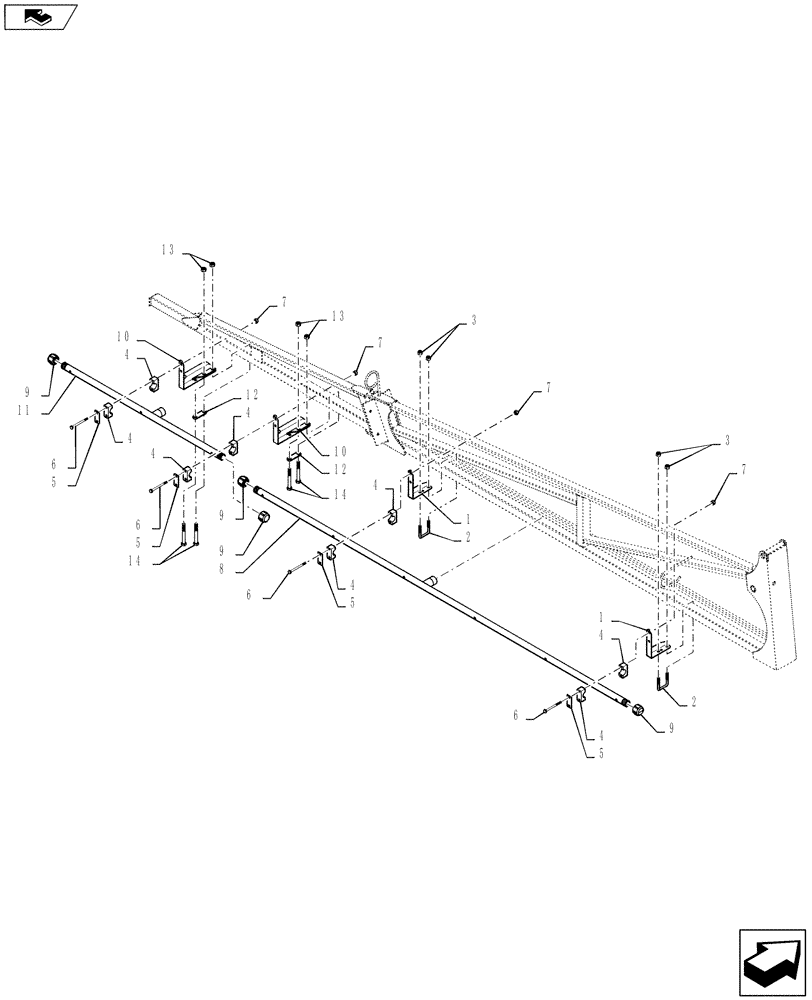

Схема запчастей Case IH 3330 - (75.130.31[02]) - SPRAYBAR, OUTER SECTION, 20" NOZZLE SPACING, OFF CENTER, 5 SECTION, 90 BOOM, SN YBT031520 AND AFTER (75) - SOIL PREPARATION
2
10
8
4
4
12
4
2
home
5
9
4
7
13
6
1
6
4
9
6
7
1
7
9
5
5
11
14
3
7
5
14
4
9
6
4
13
3
10
12
4

Артикул

Название

Примечание

Количество

1

BN323957

BRACKET

Spraybar Mount

2шт.

2

BN319919

U-BOLT

2.06 ID x 2-3/4 x 3/8

2шт.

3

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

4

BN67054

CLAMP

1.315" OD

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

6

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

9

BN73606

CAP

1" NPT, Poly Pipe

4шт.

10

84532753

MOUNT

Outer Spraybar

2шт.

11

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

1шт.

12

BN308039

PLATE

Spacer, Red

2шт.

13

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

14

86980408

BOLT,Hex, M10 x 1.5 x 80mm, Cl 8.8

4шт.

Выбрано товаров: 14
