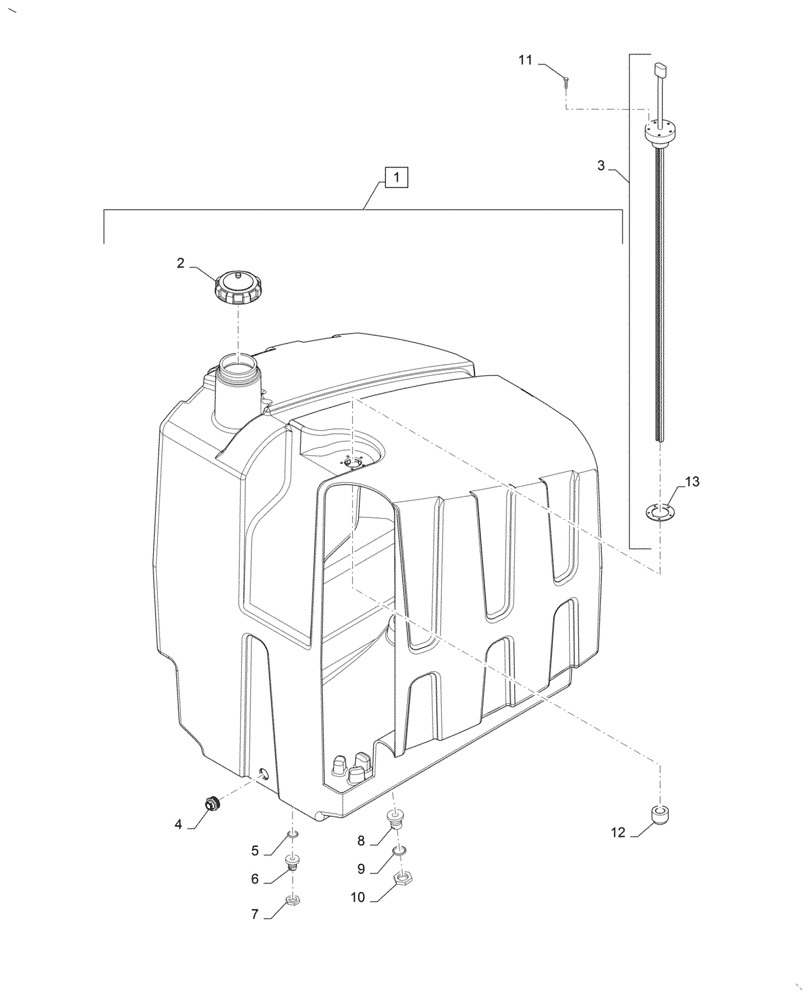

Запчасти Case IH 3330 (10.216.02) - FUEL TANK ASSEMBLY (10) - ENGINE

1

84215743

FUEL TANK

120 Gallon

1шт.

Includes Ref. 2 & 4 -10

1шт.

2

BN68502

CAP

VENTED "DIESEL"

1шт.

3

84176272

SENSOR

Fuel Tank Level, Incl 13

1шт.

4

344475A1

FITTING

fuel tank 1/2" NPTF

1шт.

5

87694594

BOLT,3/4" - 16 LH Thread External, 1/4" - 18 NPTF Internal

FITTING FUEL TANK DRAIN

1шт.

6

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

1шт.

7

1251791C1

JAM NUT,3/4" - 16 LH Thread

3/4"-16 LH

5шт.

8

87707148

FITTING

FUEL TANK DRAIN

1шт.

9

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

10

282709A1

NUT

FITTING

1шт.

11

87270794

BOLT,Hex, M5 x 30mm, SST

M5 x 30, SS

5шт.

12

87272201

BUSHING

FUEL TANK SENDER

1шт.

13

87268404

GASKET,2.4mm Thk

Included in 3

1шт.
