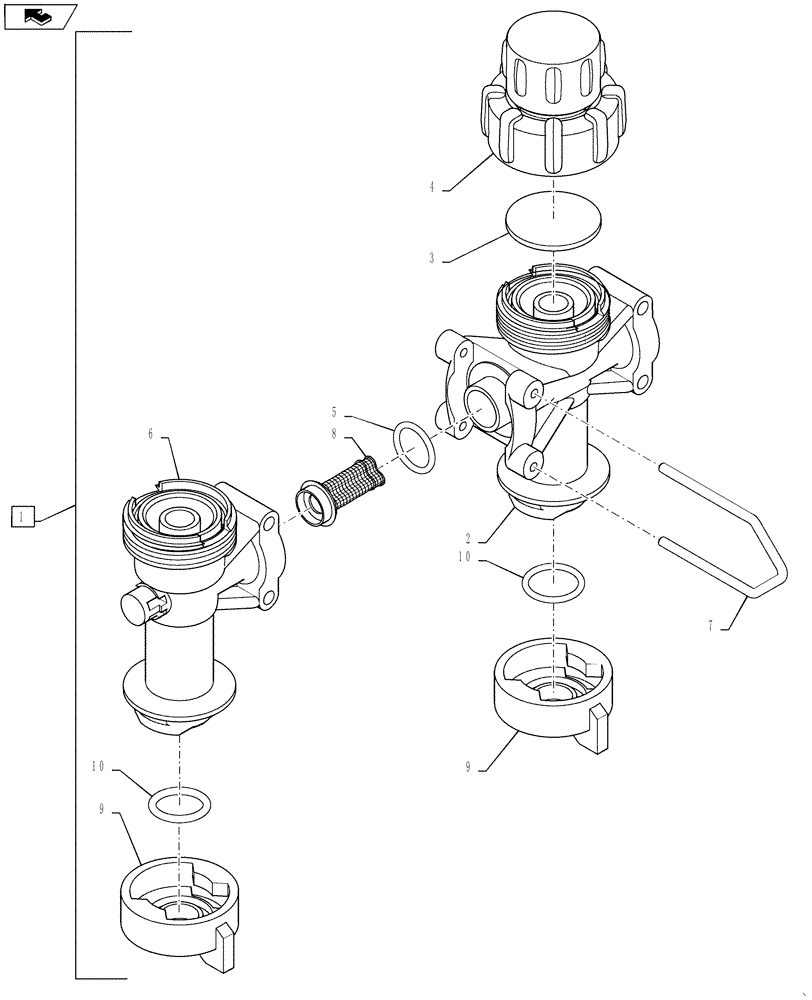

Запчасти Case IH 3330 (75.130.18) - NOZZLE, DUAL WILGER (75) - SOIL PREPARATION

1

BN325221

NOZZLE

Dual, Wilger

1шт.

2

84153116

BODY

nozzle, diaphragm style

1шт.

3

84153112

DIAPHRAGM

1шт.

4

84153113

MODULE

shut-off

1шт.

5

84153115

O-RING,0.484" ID x 0.139" Width

#206 Class 5

1шт.

6

84153114

END

body, diaphragm style

1шт.

7

84153117

LOCK,U-Clip 302SS

u-clip

1шт.

8

84157747

SCREEN,Inter-Body Strainer Assy, 80 M

strainer assy, interbody 80 mesh

1шт.

9

84244013

PLUG,Plug,Cap-Black,w/ O-ring

Cap, W/ O-Ring

2шт.

10

8408

O-RING,13 mm x 3 mm

Nozzle Seal Como-Jet

2шт.
