(75.130.15[01]) - 1-WAY WILGER, ASSEMBLY

Запчасти Case IH 3330 (75.130.15[01]) - 1-WAY WILGER, ASSEMBLY (75) - SOIL PREPARATION

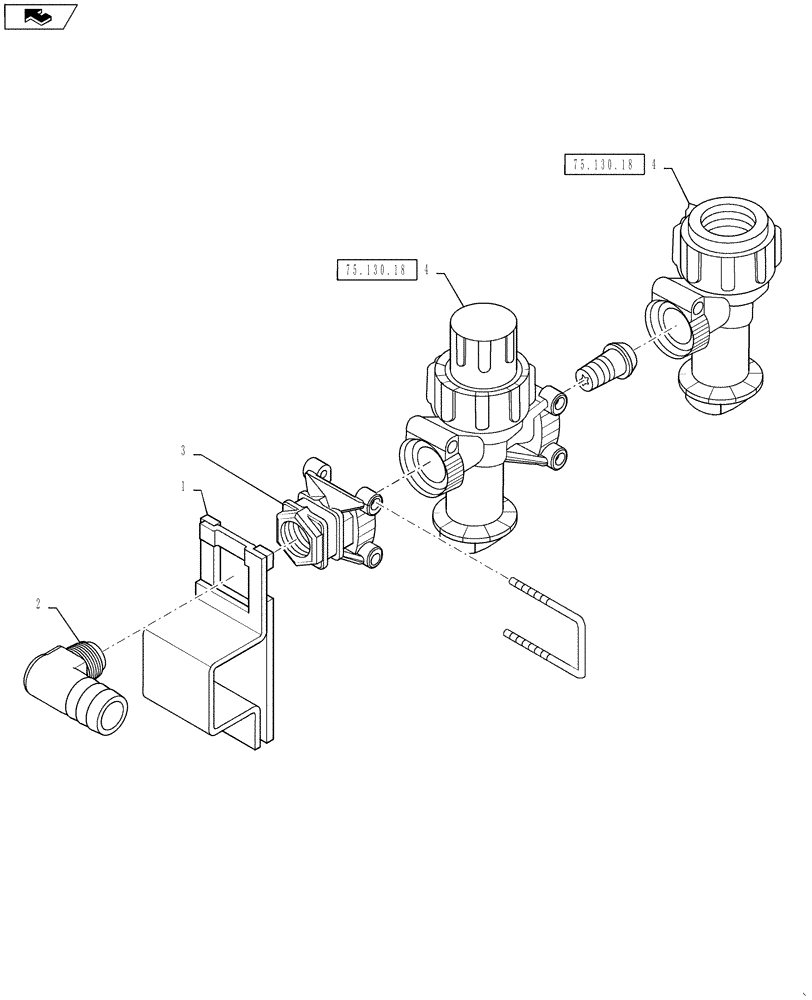

Схема запчастей Case IH 3330 - (75.130.15[01]) - 1-WAY WILGER, ASSEMBLY (75) - SOIL PREPARATION
4
75.130.18
75.130.18
3
2
4
1
home
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87268381

KIT,3/4" Sq

mount, 3/4" sq. x 1" sq.

1шт.

2

87268384

FITTING,Hose Shank Adapter-3/4" One Way

Elbow, 90º, .38MP .75HB

1шт.

3

87268382

ADAPTER,SQ. Mount Adapter

combo clip, F x 3/8 nptf

1шт.

4

BN325221

NOZZLE

DUAL, WILGER, C-R AIM

1шт.
