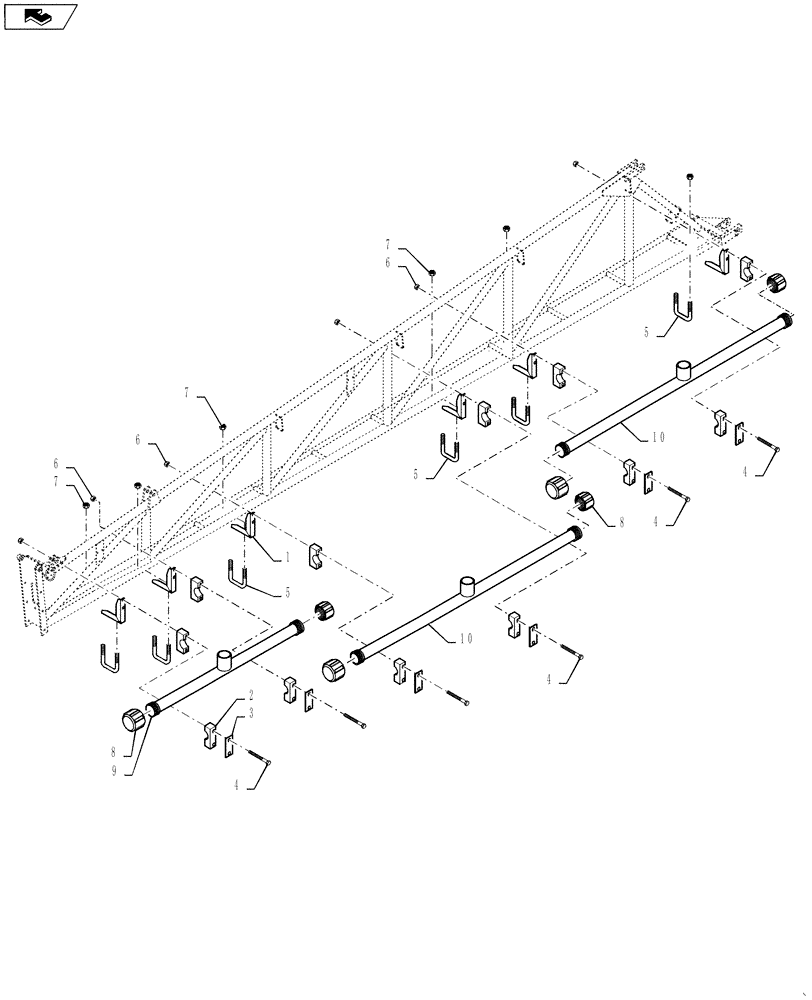

Запчасти Case IH 3330 (75.130.12[02]) - NOZZLE SPACING GROUP, 5 & 6 SECTION MID, 20" OFF CL PLBG (75) - SOIL PREPARATION

1

BN323957

BRACKET

Spraybar Mount

6шт.

2

BN67054

CLAMP

1.315" OD

6шт.

3

BN309483

PLATE

Clamp Top, Single Clamp

6шт.

4

BN55381

BOLT

1/4"-20 X 3-1/4", Stainless Steel

12шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

6шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

12шт.

7

BN55359

LOCK NUT,1/4"-20, SS

12шт.

8

BN21618

CAP

1.25"

6шт.

9

BN320273

TUBE

WLDT, 20" SP X 3 EA

1шт.

10

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

2шт.
