(75.130.09) - TANK 55 GALLON W/FITTINGS

Запчасти Case IH 3330 (75.130.09) - TANK 55 GALLON W/FITTINGS (75) - SOIL PREPARATION

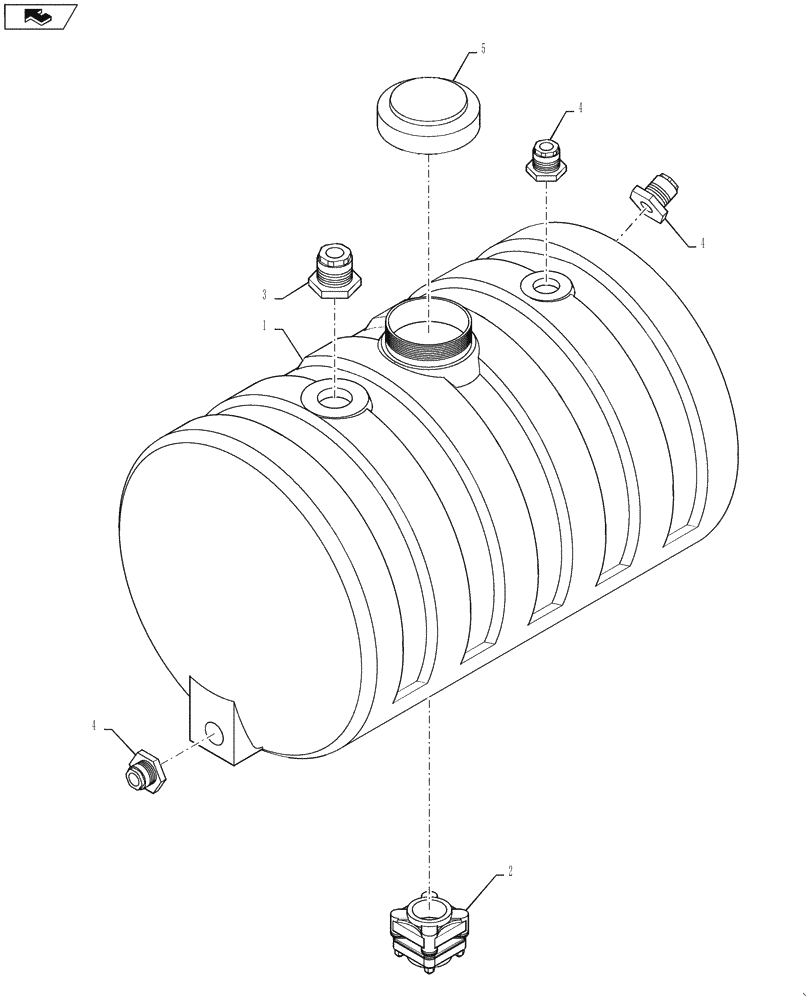

Схема запчастей Case IH 3330 - (75.130.09) - TANK 55 GALLON W/FITTINGS (75) - SOIL PREPARATION
home
5
4
4
4
1
2
3
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

343431A1

TANK

foamer group, 778D

1шт.

1

87270475

TANK

55 Gallon, With Fittings

1шт.

1

87265599

TANK

55 Gallon, With Bulkheads

1шт.

2

87265596

BULKHEAD,1-1/2" x 2" Threaded EPDM Flange

1-1/2" FPT, Drain

1шт.

3

BN2403685

BULKHEAD

Fitting, 1" MNPT

1шт.

4

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

3шт.

5

BN314276

COVER

6.00, W/BREATHER

1шт.
