(75.130.04) - FOAMER REGULATOR, PLUMBING

Запчасти Case IH 3330 (75.130.04) - FOAMER REGULATOR, PLUMBING (75) - SOIL PREPARATION

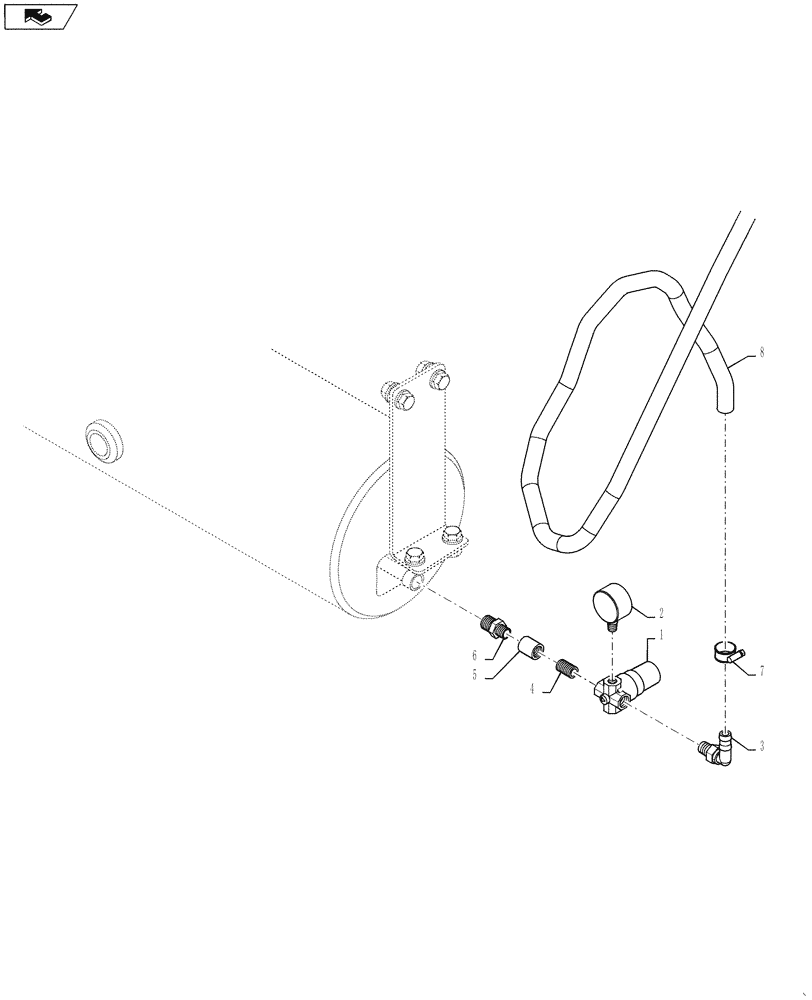

Схема запчастей Case IH 3330 - (75.130.04) - FOAMER REGULATOR, PLUMBING (75) - SOIL PREPARATION
8
7
2
3
5
4
home
6
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87388151

REGULATOR

Air Pressure

1шт.

2

86986803

GAUGE

0-30 PSI, 1/8" NPT

1шт.

3

87265091

FITTING

1/4" NPT x 1/2" Hose Barb, 90º, Poly

1шт.

4

BN1420036

NIPPLE

1/4" CLOSE SS

1шт.

5

BN73015

COUPLING

1/4" NPT, Full, Stainless Steel

1шт.

6

BN324303

LUBE NIPPLE

RED, 3/8 X 1/4 NPT, SS

1шт.

7

BN324022

HOSE CLAMP

#8, Stainless Steel

2шт.

8

BN54239

HOSE,12.7mm ID x 3048mm L

Black-1/2 EPDM, Discharge

1шт.
