(75.130.01[02]) - SPRAYBAR, CS, 20" OFF, 6 SECTION

Запчасти Case IH 3330 (75.130.01[02]) - SPRAYBAR, CS, 20" OFF, 6 SECTION (75) - SOIL PREPARATION

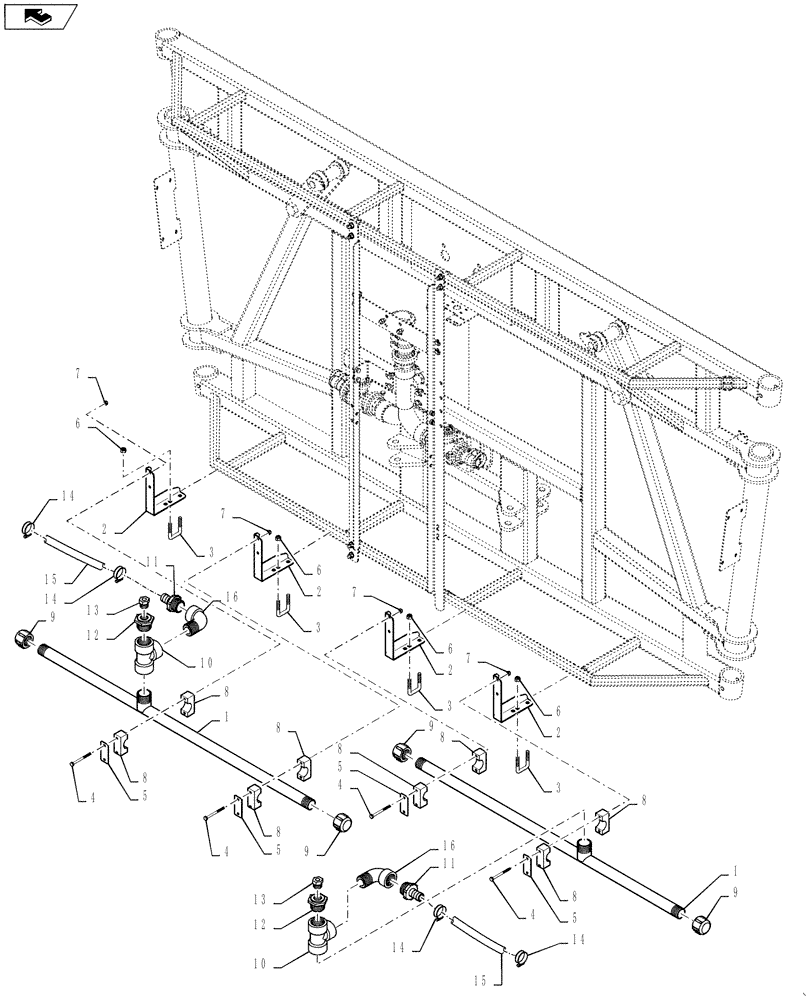

Схема запчастей Case IH 3330 - (75.130.01[02]) - SPRAYBAR, CS, 20" OFF, 6 SECTION (75) - SOIL PREPARATION
2
13
10
16
6
8
5
10
3
8
15
8
5
6
9
4
15
12
14
8
7
13
2
1
8
7
3
7
9
5
9
11
8
2
2
4
8
3
1
7
11
4
14
home
9
6
8
5
14
3
16
14
6
4
12
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87266669

PIPE,45" Long, 3 Holes, 20" Nozzle Spacing

Spraybar, 3 Nozzles, 20" Nozzle Spacing, Stainless Steel, 45" Long

2шт.

2

BN323957

BRACKET

Spraybar Mount

4шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

4шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

8шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

4шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

8шт.

7

BN55359

LOCK NUT,1/4"-20, SS

8шт.

8

BN67054

CLAMP

1.315" OD

4шт.

9

BN73606

CAP

1" NPT, Poly Pipe

4шт.

10

BN73662

TEE

1-1/4", Poly

2шт.

11

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

2шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

2шт.

14

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

15

BN323217

HOSE,1.00" ID x 140.00"

EPDM

2шт.

16

BN324890

ELBOW

90º, 1.25 NPT Straight

2шт.
