Запчасти Case IH 3330 (75.130.01[01]) - SPRAYBAR, CS, 20" OFF, 5 SECTION (75) - SOIL PREPARATION

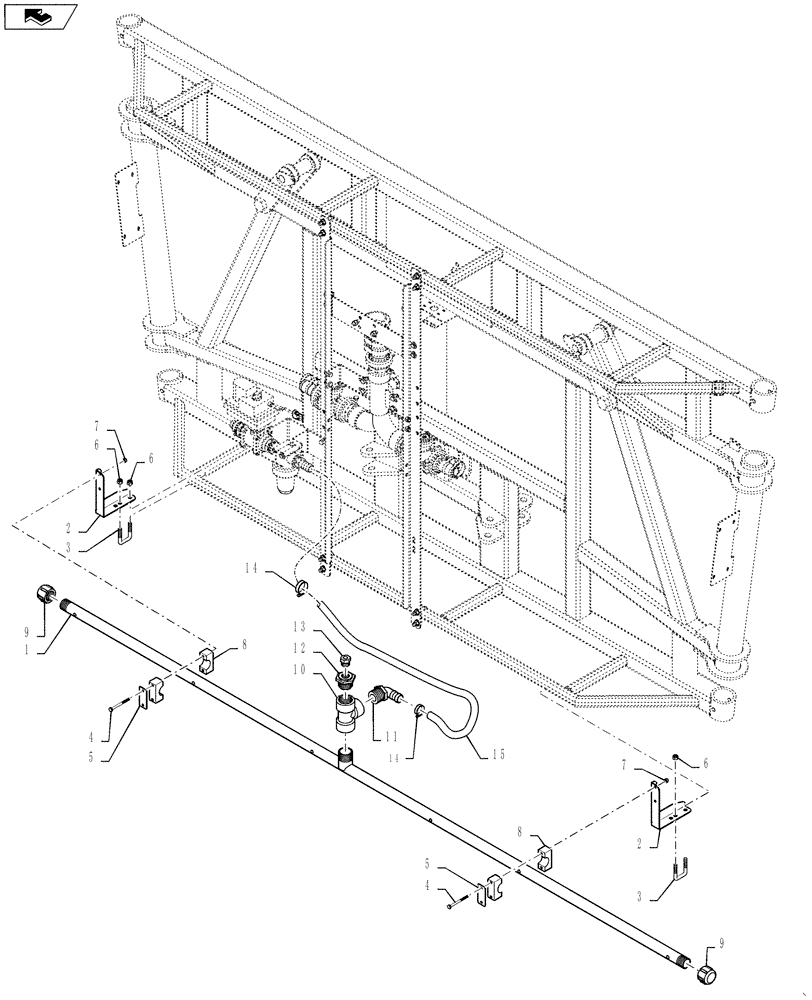

Схема запчастей Case IH 3330 - (75.130.01[01]) - SPRAYBAR, CS, 20" OFF, 5 SECTION (75) - SOIL PREPARATION
2
4
1
9
6
6
9
5
10
7
8
8
14
4
12
2
6
11
7
3
3
13
home
15
14
5

Артикул

Название

Примечание

Количество

1

87266668

PIPE,105" Long, 6 Holes, 20" Nozzle Spacing

Spraybar, 6 Nozzles, 20" Nozzle Spacing, Stainless Steel, 105" Long

1шт.

2

BN323957

BRACKET

Spraybar Mount

2шт.

3

BN319918

U-BOLT,SQ BND 1.31" ID x 3/8"

BOLT "U" Square Bend 3/8"-16 x 1.31 wide x 2.00 Deep

2шт.

4

BN67050

BOLT,1/4"-20 X 3.00", Stainless Steel

4шт.

5

BN309483

PLATE

Clamp Top, Single Clamp

2шт.

6

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

7

BN55359

LOCK NUT,1/4"-20, SS

4шт.

8

BN67054

CLAMP

1.315" OD

2шт.

9

BN73606

CAP

1" NPT, Poly Pipe

2шт.

10

BN73662

TEE

1-1/4", Poly

1шт.

11

BN2296590

90 ELBOW

1-1/4" MPT x 1" Hose Barb, Poly

1шт.

12

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

13

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

14

BN75990

HOSE CLAMP

#16, Stainless Steel

2шт.

15

BN66855

HOSE

1" EPDM x 26.00"

1шт.

Выбрано товаров: 15
