(75.120.74) - RESTRICTOR VALVE BREAKDOWN, "Y" STYLE, 87624339

Запчасти Case IH 3330 (75.120.74) - RESTRICTOR VALVE BREAKDOWN, "Y" STYLE, 87624339 (75) - SOIL PREPARATION

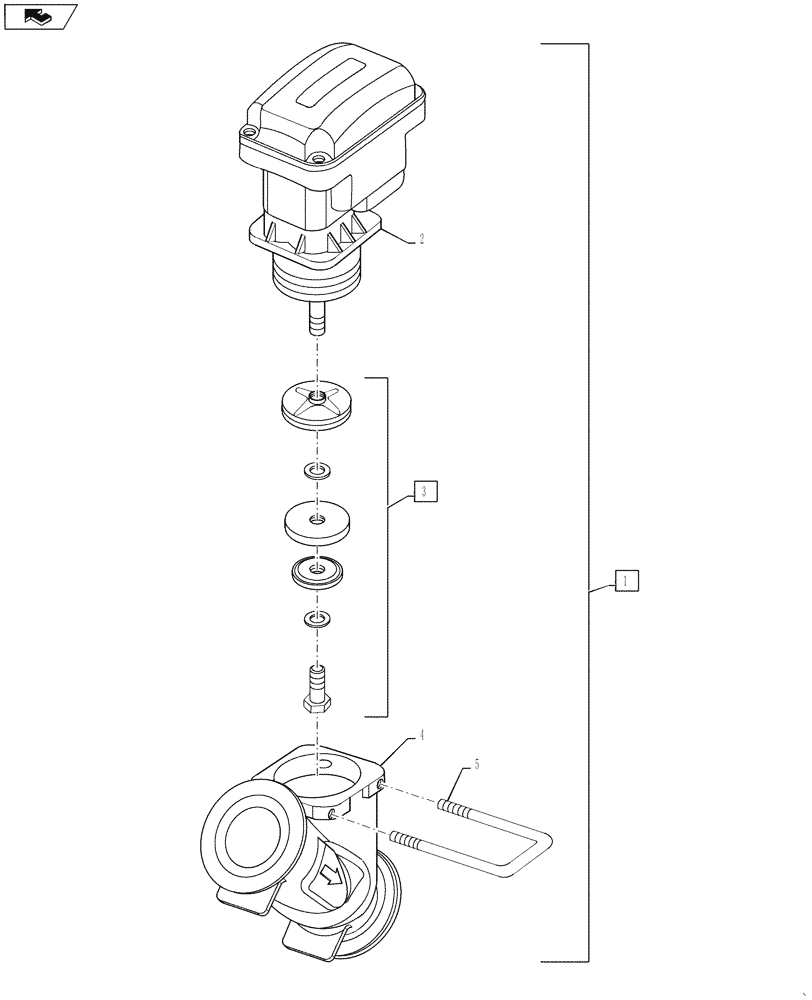

Схема запчастей Case IH 3330 - (75.120.74) - RESTRICTOR VALVE BREAKDOWN, "Y" STYLE, 87624339 (75) - SOIL PREPARATION
1
home
4
5
3
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

2

87658830

MOTOR-PUMP

1шт.

3

87658834

SERVICE KIT

High Flow Plunger

1шт.

4

87658831

VALVE BODY

"Y" Angled

1шт.

5

87658833

CLIP

High Flow Motor

1шт.

14463281

O-RING,0.984" ID x 0.139" Width

Valve Motor Seal, Located Between Motor Ref 2 And Valve Body Ref 4, Not Shown

1шт.
