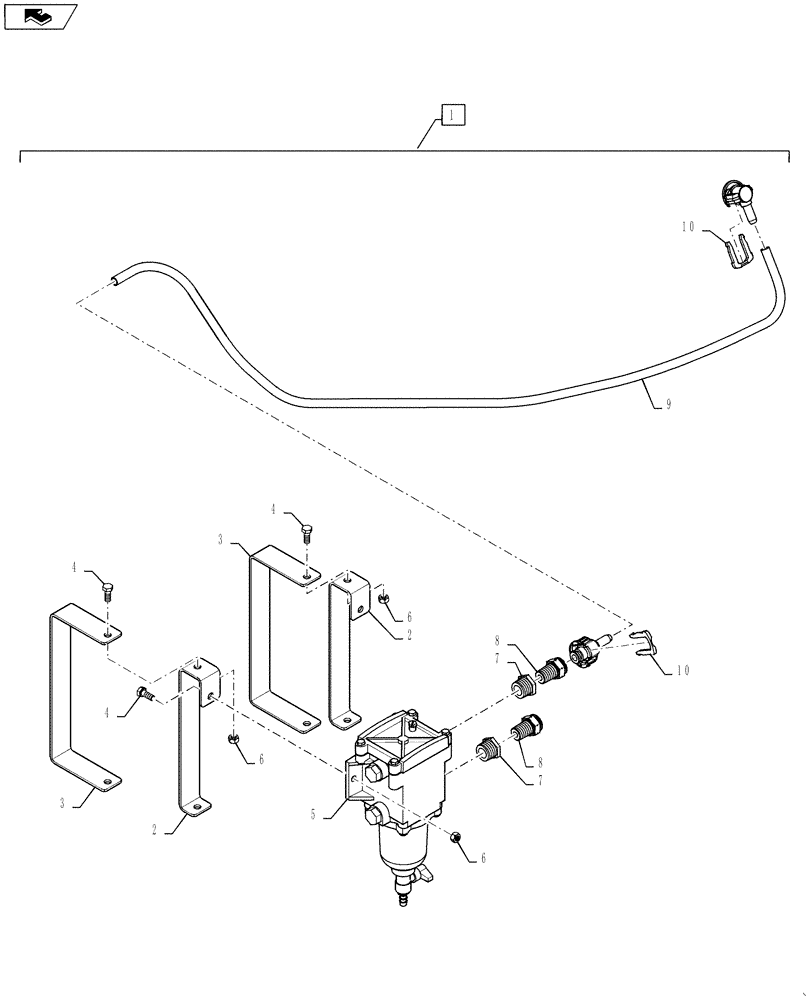

Запчасти Case IH 3330 (10.206.04) - DIA KIT, FUEL SEPERATOR (10) - ENGINE

1

84290856

KIT

Fuel Seperator

1шт.

2

84290841

MOUNT

IN, SEPERATOR, P

2шт.

3

84290850

MOUNT

FR, SEPERATOR, P

2шт.

4

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

6шт.

5

87346728

FUEL FILTER

1шт.

6

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

6шт.

7

84292047

ADAPTER

PIPE F -8 NPTF X M -8 ORB

2шт.

8

87270102

FITTING,1/2" NPTF to Quick Connect

BRASS NG12X1/2NPTF

2шт.

9

87272535

FUEL HOSE

FUEL,TANK TO FILTER, INCLUDES NYLON FITTINGS

1шт.

10

291207C1

CLAMP

CABLE TIE 15.5IN.

4шт.
