Запчасти Case IH 3330 (75.120.72) - VALVE, HYDRAULIC, ULTRAGLIDE, (90/100 FT BOOMS - ASN YAT027064), (120 FT BOOM - ASN YAT027104) (75) - SOIL PREPARATION

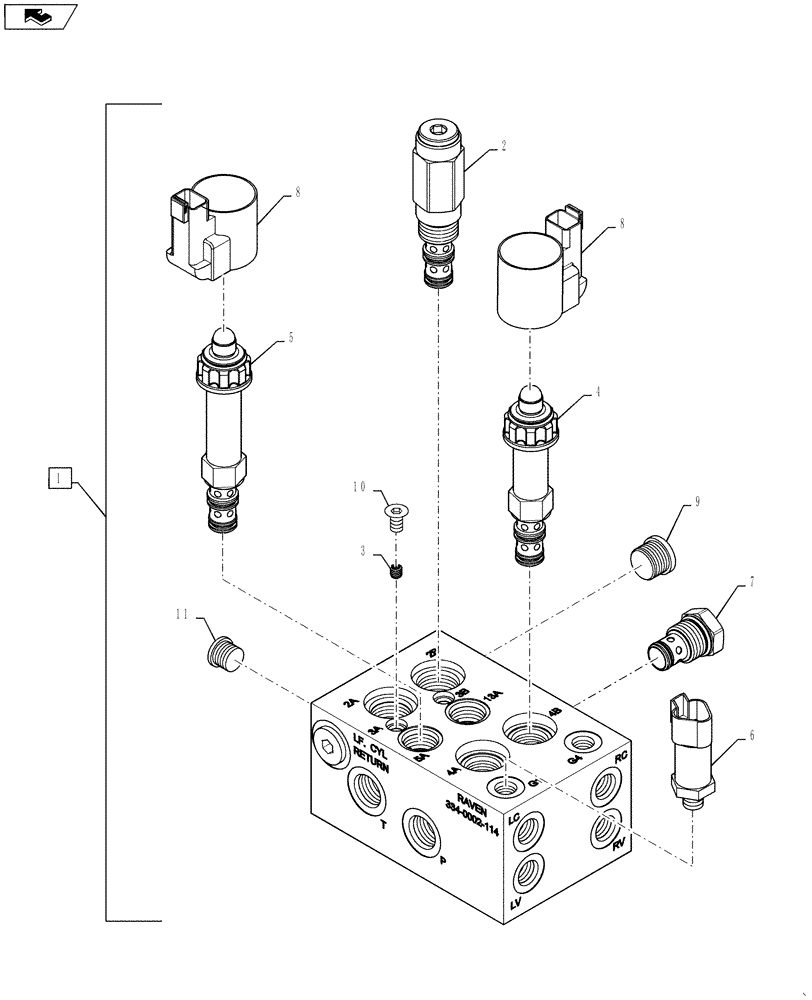

Схема запчастей Case IH 3330 - (75.120.72) - VALVE, HYDRAULIC, ULTRAGLIDE, (90/100 FT BOOMS - ASN YAT027064), (120 FT BOOM - ASN YAT027104) (75) - SOIL PREPARATION
4
6
3
8
home
8
11
5
7
1
10
2
9

Артикул

Название

Примечание

Количество

1

84299098

HYDRAULIC VALVE

POWERGLIDE PLUS/ULTRAGLIDE, CLOSED CENTER, AUTOBOOM

1шт.

2

84300101

PILOT VALVE

SEQUENCE, EXT PILOT, INT DRAIN

2шт.

3

84300103

ORIFICE

.062, .250-20 THREADS

2шт.

4

84300100

CARTRIDGE

CARTRIDGE, BLOCKER, DOUBLE, -08

2шт.

5

84300099

CARTRIDGE

CARTRIDGE, PROPORTIONAL, REDUCING/RELIEVING, -08

2шт.

6

87717374

SENDER UNIT

TRANSDUCER, PRESSURE, 3 PIN

2шт.

7

84300098

CHECK VALVE

CARTRIDGE, CHECK, W/SCREEN, -10

1шт.

8

84300102

COIL

12VDC,DN-40,DT04-2P CONN,-8

4шт.

9

NSS

NOT SOLD SEPARAT

PLUG, 3/4"-16, O-ring Seal, Internal Hex

3шт.

10

NSS

NOT SOLD SEPARAT

PLUG, -2 SAE, O-ring Seal, Internal Hex

2шт.

11

NSS

NOT SOLD SEPARAT

PLUG, 7/16"-20, O-ring Seal, Internal Hex

2шт.

Выбрано товаров: 11
