Запчасти Case IH 3330 (75.120.68) - BOOM VALVE PLUMBING, 7 SECTION, LOW FLOW, 120 BOOM (75) - SOIL PREPARATION

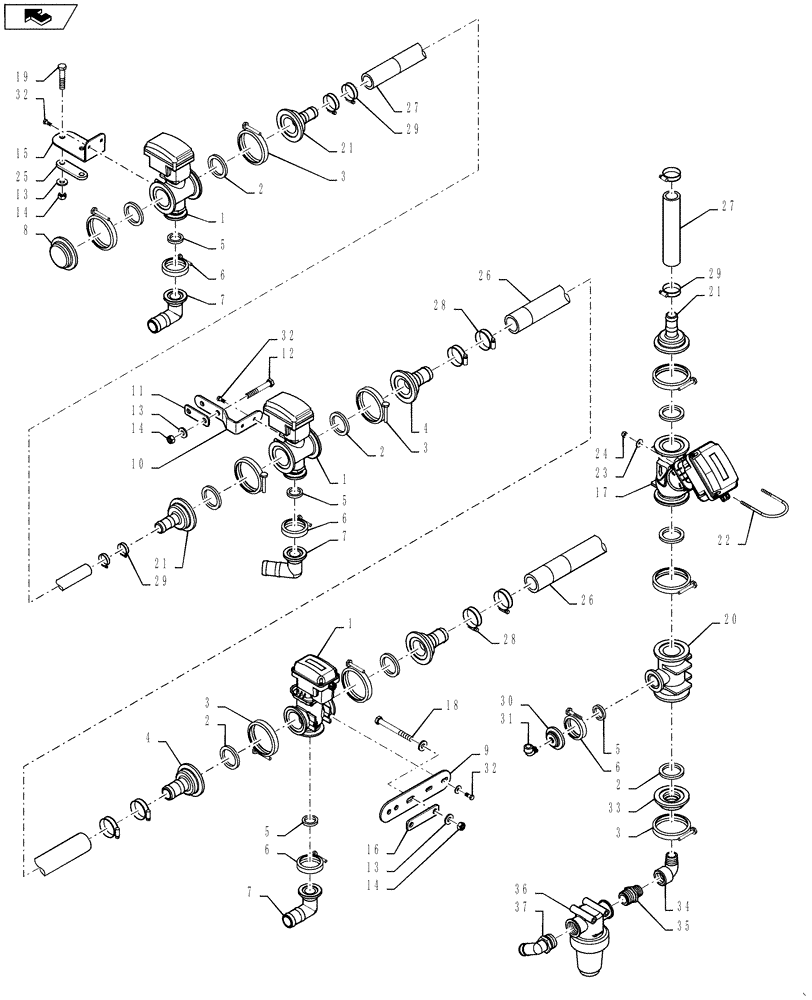

Схема запчастей Case IH 3330 - (75.120.68) - BOOM VALVE PLUMBING, 7 SECTION, LOW FLOW, 120 BOOM (75) - SOIL PREPARATION
35
7
36
6
3
34
29
2
3
22
4
1
14
8
14
5
13
17
30
10
28
2
26
13
1
5
21
16
1
21
6
37
27
6
28
32
3
home
5
32
5
9
2
21
12
27
26
23
3
7
24
6
11
4
2
19
14
20
18
13
15
31
29
29
25
33
32
7

Артикул

Название

Примечание

Количество

1

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly, 3 Pin Deutsch

6шт.

See Fig 75.120.75 For Service Parts Breakdown

1шт.

If Flat Weather Pack Connector is needed Order 87268840

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

14шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

14шт.

4

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

6шт.

5

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

7шт.

6

BN303203

CLAMP,1" Flange

1” Flange Manifold

7шт.

7

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90º, 1.0 FLB 1.25 HB, Poly

6шт.

8

86984085

PLUG,2" Flange Plug

2" Manifold

2шт.

9

87625607

MOUNT

Boom Valve

2шт.

10

87625608

MOUNTING PARTS

Boom Valve, Bent

2шт.

11

87628243

PLATE

1 1/2" Tube

2шт.

12

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

13

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

14

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

15

87628244

MOUNT

Boom Valve, Outer

2шт.

16

87620862

PLATE

Backer, 2 1/2" Tube

2шт.

17

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports, 3 Pin Deutsch

1шт.

See Fig 75.120.74 For Service Parts Breakdown

1шт.

18

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

4шт.

19

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

4шт.

20

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

21

BN317966

FLANGE,2" Flange x 1" Hose Barb, Poly

2" Flange x 1" Hose Barb, Poly

5шт.

22

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

23

BN50138

WASHER,1/4", SS

8шт.

24

BN55359

LOCK NUT,1/4"-20, SS

4шт.

25

BN308039

PLATE

Spacer

2шт.

26

BN29563

HOSE

Bulk 1.25" EPDM, Discharge

82.5шт.

27

BN53479

HOSE,1.00" ID BULK

26шт.

28

BN320156

HOSE CLAMP

#24, Stainless Steel

8шт.

29

BN75990

HOSE CLAMP

#16, Stainless Steel

6шт.

30

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

31

BN73017

ELBOW

90 STREET-1/4 SS

1шт.

32

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

12шт.

33

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Poly

1шт.

34

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

35

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

36

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

37

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

1шт.

Выбрано товаров: 40
