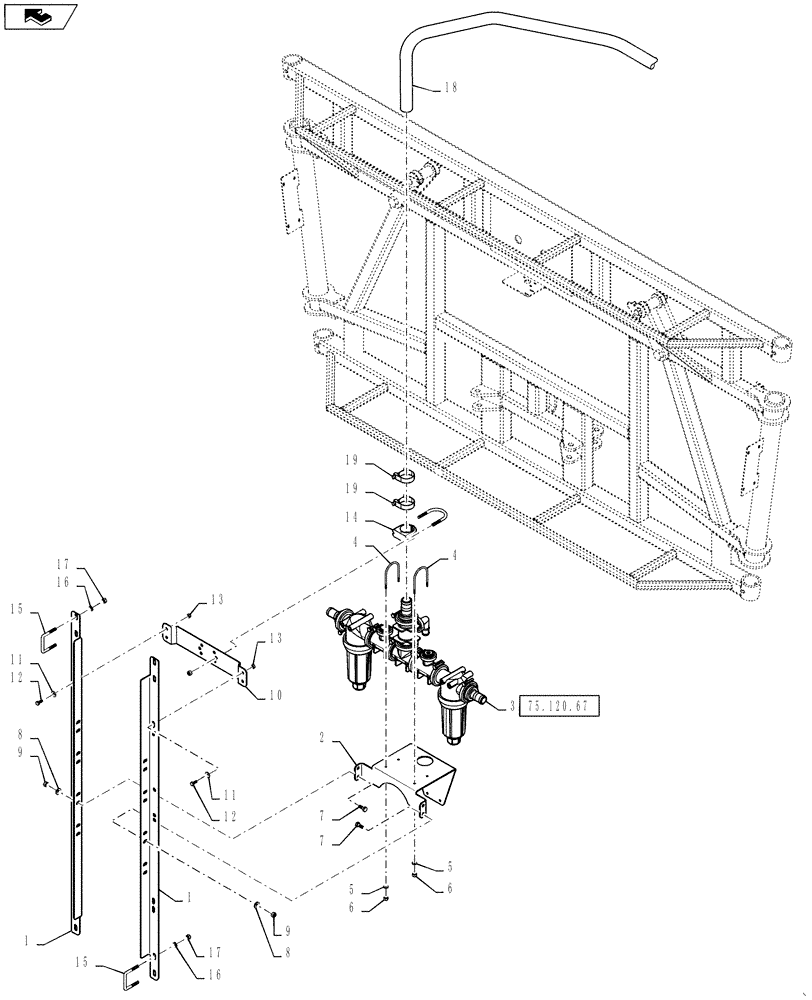

Запчасти Case IH 3330 (75.120.66) - CENTER SECTION PLUMBING, 7 SECTION, LOW FLOW, 120 BOOM (75) - SOIL PREPARATION

1

87586830

MOUNT

Manifold, Center Section

2шт.

2

87663460

MOUNTING PLATE

MANIFOLD, LO

1шт.

3

87662603

CNTR SECTION, LO, SEE FIG.09-085

1шт.

4

BN303201

U-BOLT

BOLT "U" 1/4 x 2.38R x 3.75

2шт.

5

87529236

WASHER,0.28" ID x 0.62" OD x 0.07" Thk

0.281 X 0.625 X 0.065 HTS DOR HDN

4шт.

6

87343957

NUT,1/4" - 20

Hex, 1/4"-20, GB

4шт.

7

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

8

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

9

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

10

BN325194

BRACKET, SUPPORTING

MOUNT, CLAMP, 5 SECT, CTR

1шт.

11

BN50142

WASHER,5/16", Stainless Steel

4шт.

12

BN50476

BOLT,5/16"-18 x 0.75", Stainless

4шт.

13

BN55361

NUT,5/16"-18, Nylon, Stainless

4шт.

14

343817A1

HOSE CLAMP

CLAMP ASSY, UBOLT, 1.5 PIPE, Use In Place Of BN320371

1шт.

15

87586548

U-BOLT

Square, M10 x 64 mm id x 64

4шт.

16

BN50146

WASHER,3/8", Stainless

8шт.

17

87344003

NUT,M10-1.5, 10, DOR

8шт.

18

BN53621

HOSE,1.50" ID BULK

Suction, EPDM , Cut to 156", Use in place of 87265473

1шт.

19

BN53811

CLAMP

T-BOLT,1.93-2.18, Use In Place Of BN53810

4шт.
