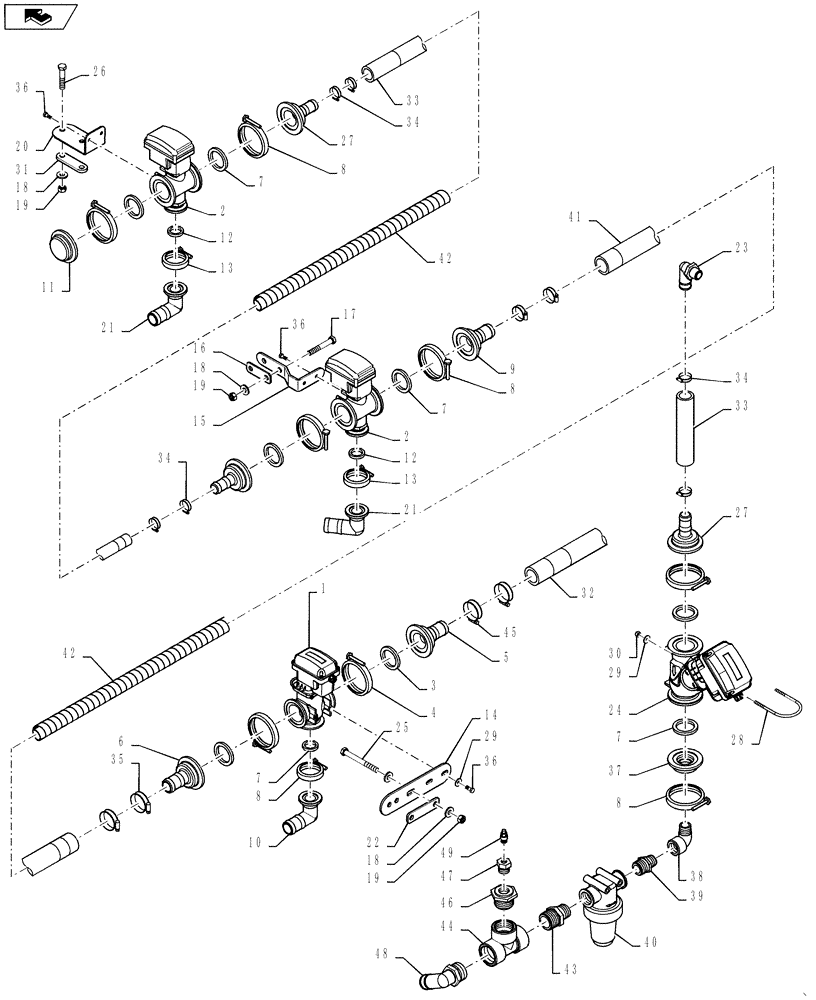

Запчасти Case IH 3330 (75.120.65[02]) - BOOM PLUMBING, 7 SECTION, 120 BOOM, SN YBT029768 AND AFTER (75) - SOIL PREPARATION

1

87624338

SHUT-OFF VALVE

"T" Style, Plunger, 2.2"Flange Port x 2" Flange Port x 2" Flange Port, 3 Pin Deutsch

2шт.

See Fig 75.120.73 For Service Parts Breakdown

1шт.

If Flat Weather Pack Connector Is Needed Order 87268840

1шт.

2

87632830

SHUT-OFF VALVE

Electric Plunger, 2.2" Flange x 1" Flange, 3/4" Full Port, Poly, 3 Pin Deutsch

4шт.

See Fig 75.120.75 For Service Parts Breakdown

1шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

4шт.

4

BN313773

CLAMP,2" Full Port

2" Flange

4шт.

5

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

2шт.

6

BN322277

FITTING,2" Full Port Flange x 1-1/2" Hose Barb

2" Full Port Flange x 1-1/2" Hose Barb, Poly

2шт.

7

BN303204

GASKET,1-1/2" EPDM Gasket

12шт.

8

BN303199

CLAMP,2" Flange

2" Standard Flange

12шт.

9

BN306901

FITTING,2" Flange x 1-1/2" Hose Barb, Poly

2" Flange x 1-1/2" Hose Barb, Poly

2шт.

10

BN303189

FITTING,2" Flange x 1-1/4" 90 Degree Hose Barb Elbow

2" Flange x 1-1/4" Hose Barb, Poly

2шт.

11

BN304317

PLUG,2" Flange, Poly

2" Manifold Flange

2шт.

12

BN303205

GASKET

1” Flange, EPDM

4шт.

13

BN303203

CLAMP,1" Flange

1" Flange

4шт.

14

87625607

MOUNT

Inner Boom Valve

2шт.

15

87625608

MOUNTING PARTS

Middle Boom Valve

2шт.

16

87628243

PLATE

1 1/2" Tube

2шт.

17

86980407

BOLT,Hex, M10 x 70mm, Cl 8.8

4шт.

18

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

16шт.

19

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

12шт.

20

87270047

MOUNT

Outer Boom Valve

2шт.

21

87575511

FITTING,1" Flange x 1-1/4" 90 Degree Hose Barb Elbow

90º, 1" Flange x 1-1/4 Hose Barb, Poly

4шт.

22

87620862

PLATE

Backer, 2 1/2" Tube

2шт.

23

BN67315

FITTING,1" Male Thread x 1-1/4" 90 Degree Hose Barb

1" NPT x 1-1/4" Hose Barb, Poly

1шт.

24

87624339

SHUT-OFF VALVE

"Y" Style, Plunger, 2" Flange Ports

1шт.

See Fig 75.120.74 For Service Parts Breakdown

1шт.

25

86980410

BOLT,Hex, M10 x 100mm, Cl 8.8

4шт.

26

87341824

BOLT,Hex, M10 x 170mm, Cl 8.8

4шт.

27

BN306900

FITTING,2" Flange x 1-1/4" Hose Barb, Poly

2” Flange x 1 1/4" Hose Barb

5шт.

28

BN303201

U-BOLT

1/4 x 2.38R x 3.75

2шт.

29

BN50138

WASHER,1/4", SS

8шт.

30

BN55359

LOCK NUT,1/4"-20, SS

4шт.

31

BN308039

PLATE

Spacer

2шт.

32

BN53841

HOSE,2.00" ID

EPDM, Cut To Length

34FTшт.

33

BN29563

HOSE

1-1/4" ID, EPDM, Cut To Length

26FTшт.

34

BN320156

HOSE CLAMP

#24, Stainless Steel

10шт.

35

BN310448

HOSE CLAMP

#28, Stainless Steel

8шт.

36

BN52033

BOLT,1/4"-20 X 5/8", Stainless Steel

12шт.

37

344407A1

PLUG,2" Flange Plug with 3/4" FPT

2" Flange x 3/4" NPT, Poly

1шт.

38

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

1шт.

39

BN73649

NIPPLE,1" x 3/4" Poly Reducing Nipple

1" x 3/4" Poly

1шт.

40

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

See Fig 75.120.24 For Service Parts Breakdown

1шт.

41

BN53842

HOSE,38.10 mm ID Bulk

EPDM

39.7шт.

42

84414496

PROTECTOR

Hose Wrap

4шт.

43

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

44

BN73662

TEE

1-1/4", Poly

1шт.

45

BN310449

CLAMP,50mm - 65mm

#32, Stainless Steel

8шт.

46

BN73653

BUSHING,1-1/4" Male NPT x 3/4" Female NPT, Poly

Reducer, 1-1/4" MPT x 3/4" FPT, Poly

1шт.

47

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

48

BN73663

ELBOW,90 Degree Elbow, 1-1/4" Male NPT x 1-1/4" Hose Barb, Poly

1-1/4" NPT x 1-1/4" Hose Barb, 90°, Poly

1шт.

49

86986400

SWITCH

Boom Pressure Switch

1шт.

50

87021161

CLAMP,76.2mm, Coat, 8.7mm Bolt Hole, P Type

2шт.

51

87529316

WASHER,9mm ID x 21mm OD x 2.5mm Thk

4шт.

52

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

53

86980382

BOLT,Hex, M8 x 1.25 x 35mm, Cl 8.8, Full Thd

2шт.
