Запчасти Case IH 3330 (75.120.64[02]) - MANIFOLD GROUP, 7 SECTION, 120’ BOOM (75) - SOIL PREPARATION

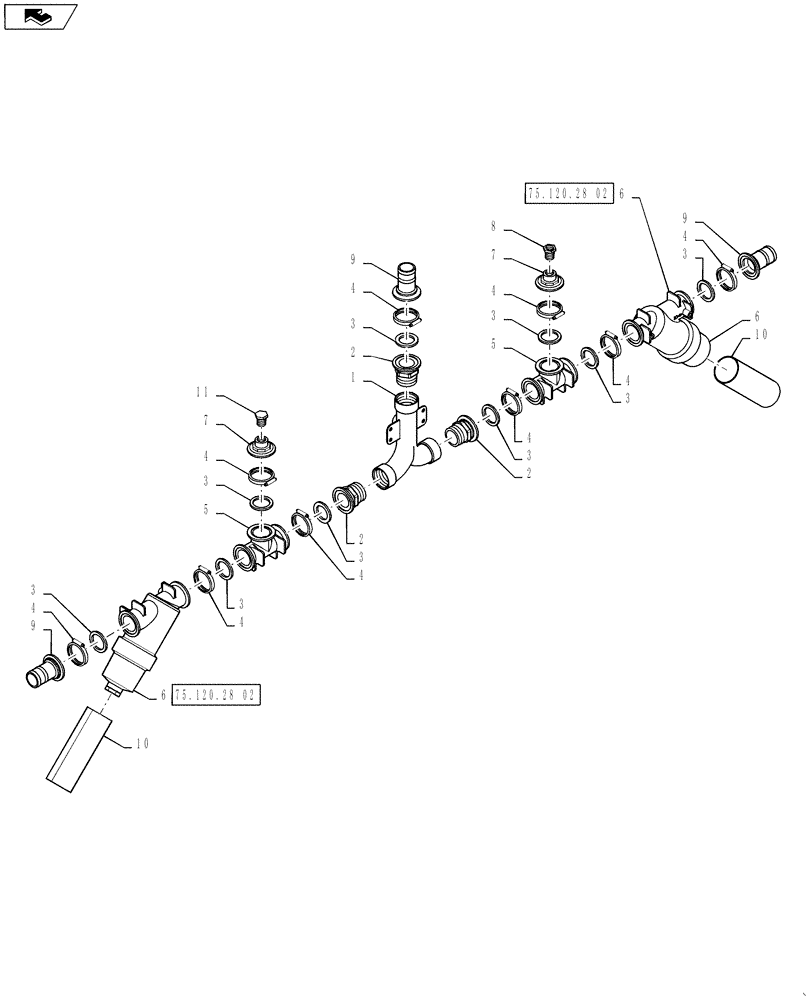

Схема запчастей Case IH 3330 - (75.120.64[02]) - MANIFOLD GROUP, 7 SECTION, 120’ BOOM (75) - SOIL PREPARATION
11
4
5
9
2
4
3
3
3
2
3
9
5
10
7
7
4
home
2
4
3
6
75.120.28 02
6
75.120.28 02
9
1
8
4
6
3
3
4
4
4
3
4
3
10

Артикул

Название

Примечание

Количество

1

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3-WAY

1шт.

2

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

3шт.

3

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

9шт.

4

BN313773

CLAMP,2" Full Port

2" Flange

9шт.

5

BN322550

TEE,2" Full Port Flange x 2" Full Port Flange x 2" Full Port Flange

2" Full Port Flange

2шт.

6

47646606

FILTER STRAINER,STRAINER, FILTER, 2.2FLB,

"Y" Style, 2" Full Port Flange, No Screen, Poly

2шт.

Refer to 75.120.28(02)

1шт.

7

87623375

PLUG,2" Full Port Flange Plug with 3/4" FPT

2" Flange x 3/4" FPT, Poly

2шт.

8

BN73550

BUSHING

Reducer, 3/4" MPT x 1/4" FPT, Poly

1шт.

9

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

3шт.

10

87633430

SCREEN,50 SS Mesh Screen

50 Mesh, Stainless Steel

2шт.

11

BN73553

PLUG

3/4" NPT, Poly

1шт.

Выбрано товаров: 12
