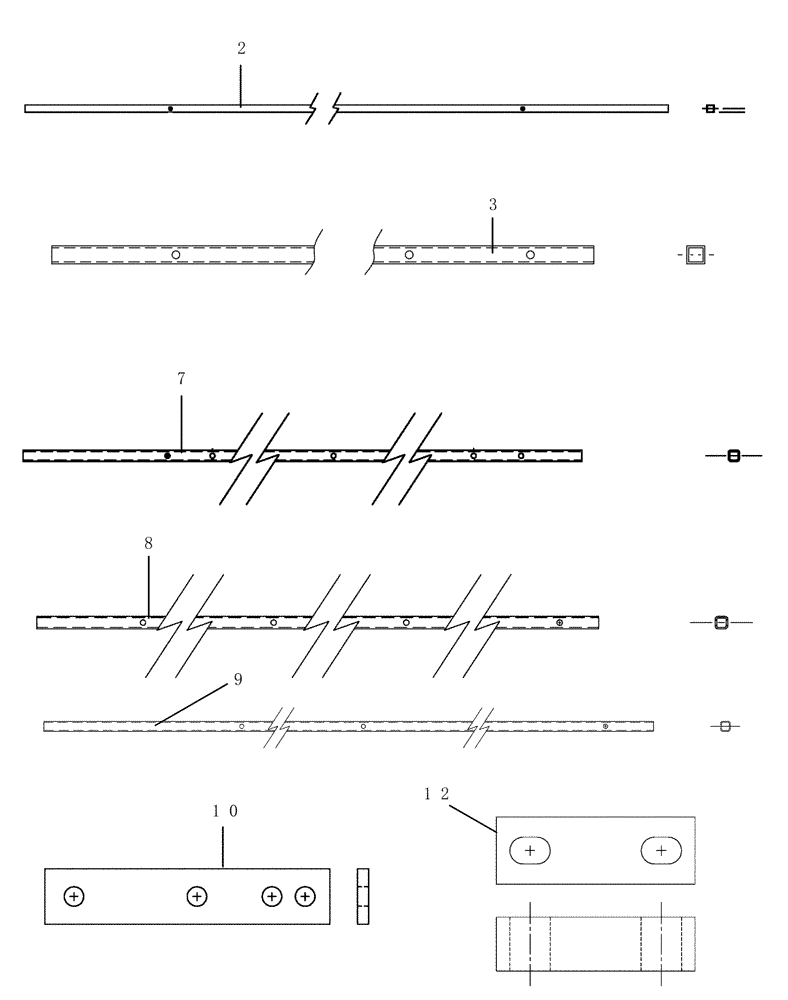

Запчасти Case IH 3330 (75.120.57) - 90’ KNOCKDOWN TUBE PACKAGE (75) - SOIL PREPARATION

1

88902

NUT,3/8"-16

104шт.

2

BN24486

TUBE

1" Sq x 124"

1шт.

3

BN25936

TUBE

1 x 1 x 12 ga x 64.62 Long

2шт.

4

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

26шт.

5

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

24шт.

6

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

18шт.

7

BN67274

TUBE

nozzle mount

2шт.

8

BN67275

TUBE

nozzle mount

2шт.

9

BN67277

TUBE

nozzle mount

2шт.

10

BN67279

BRACKET

mount, dry boom

26шт.

11

BN67284

U-BOLT

3/8", square bend - 1.25" ID

2шт.

12

BN68213

BAR

spacer-breakaway

4шт.

13

BN71006

COTTER PIN

1/8", #11

26шт.
