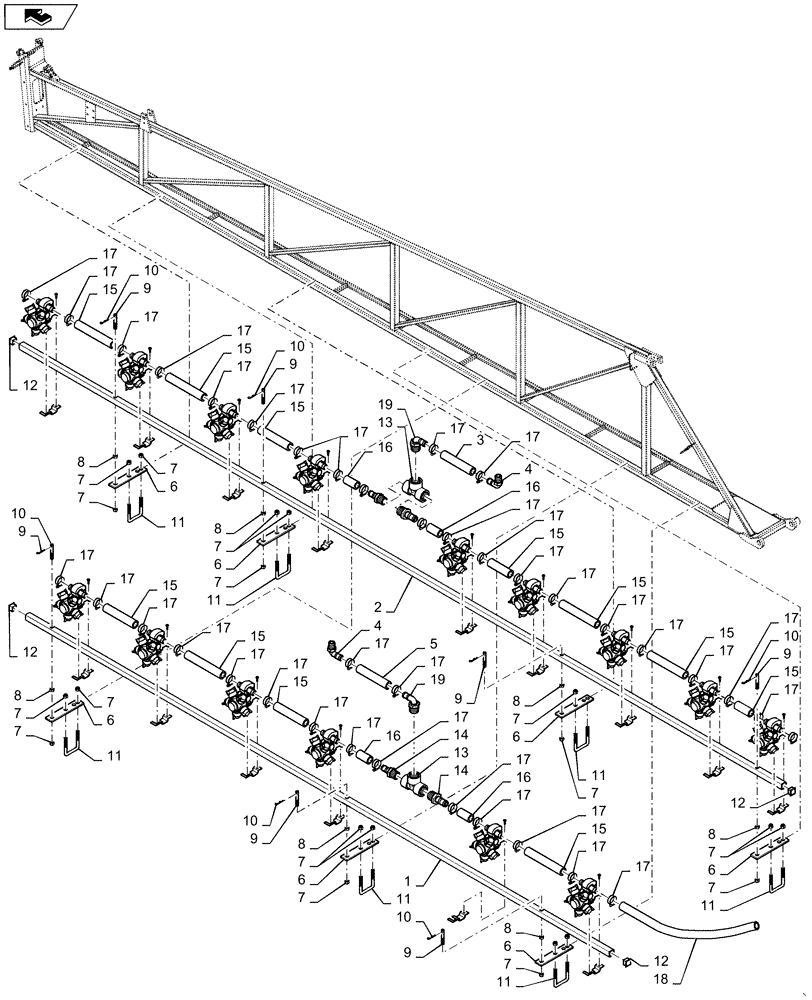

Запчасти Case IH 3330 (75.120.55) - BOOM, MID PLUMBING, 6 SECTION, LO-FLOW (75) - SOIL PREPARATION

1

BN67277

TUBE

nozzle mount

1шт.

2

BN67275

TUBE

nozzle mount

1шт.

3

BN53852

HOSE,0.75" ID x 17.00"

1шт.

4

BN73562

FITTING,3/4" Male Thread x 3/4" 90 Degree Hose Barb

3/4" NPT x 3/4" Hose Barb, 90°

2шт.

5

BN53916

3/4" ID EPDM X 4"

1шт.

Cut 21" from bulk roll

1шт.

6

BN67279

BRACKET

mount, dry boom

7шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

21шт.

8

BN50064

NUT

3/8"-16, Stainless Steel

7шт.

9

BN29599

PIN,9.53mm OD x 64mm L

Rework Bolt 3/8"-16 x 2.75

7шт.

10

BN71006

COTTER PIN

1/8", #11

7шт.

11

BN319919

U-BOLT

Sq. Bend 2.06 ID x 3/8

7шт.

12

BN32823

PLUG

Cap - Tubing - Fits 1 x 1 x 14G

4шт.

13

BN73629

TEE

1" Poly Pipe

2шт.

14

BN53666

FITTING

HOSE, BARB 1 NPT X 3/4 HOSE

4шт.

15

BN53738

FLEXIBLE HOSE,0.75" ID x 18.50"

11шт.

16

BN53737

FLEXIBLE HOSE,0.75" ID x 7.50"

4шт.

17

BN310446

HOSE CLAMP

#12, Stainless Steel

34шт.

18

BN53914

HOSE,0.75" ID x 60.00"

1шт.

19

BN73684

ELBOW

90° 1" MPT x 3/4" Barb

2шт.
