(75.120.49) - BOOM PLUMBING GROUP, 5-6 SECTION 100’

Запчасти Case IH 3330 (75.120.49) - BOOM PLUMBING GROUP, 5-6 SECTION 100’ (75) - SOIL PREPARATION

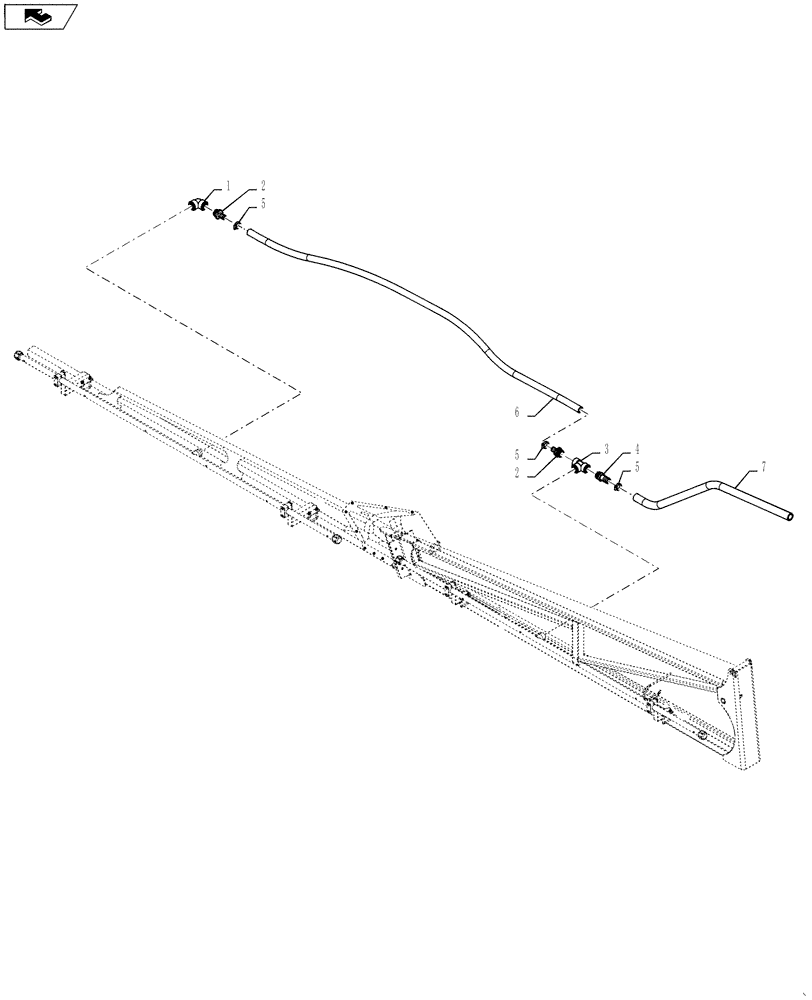

Схема запчастей Case IH 3330 - (75.120.49) - BOOM PLUMBING GROUP, 5-6 SECTION 100’ (75) - SOIL PREPARATION
home
1
4
5
2
5
3
2
5
7
6
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN310447

HOSE CLAMP

#20, Stainless Steel

3шт.

6

BN53844

HOSE

EPDM, 1" ID X 120"

1шт.

7

87383454

HOSE,80.00 mm

1шт.

Order bulk 342228A1

1шт.
