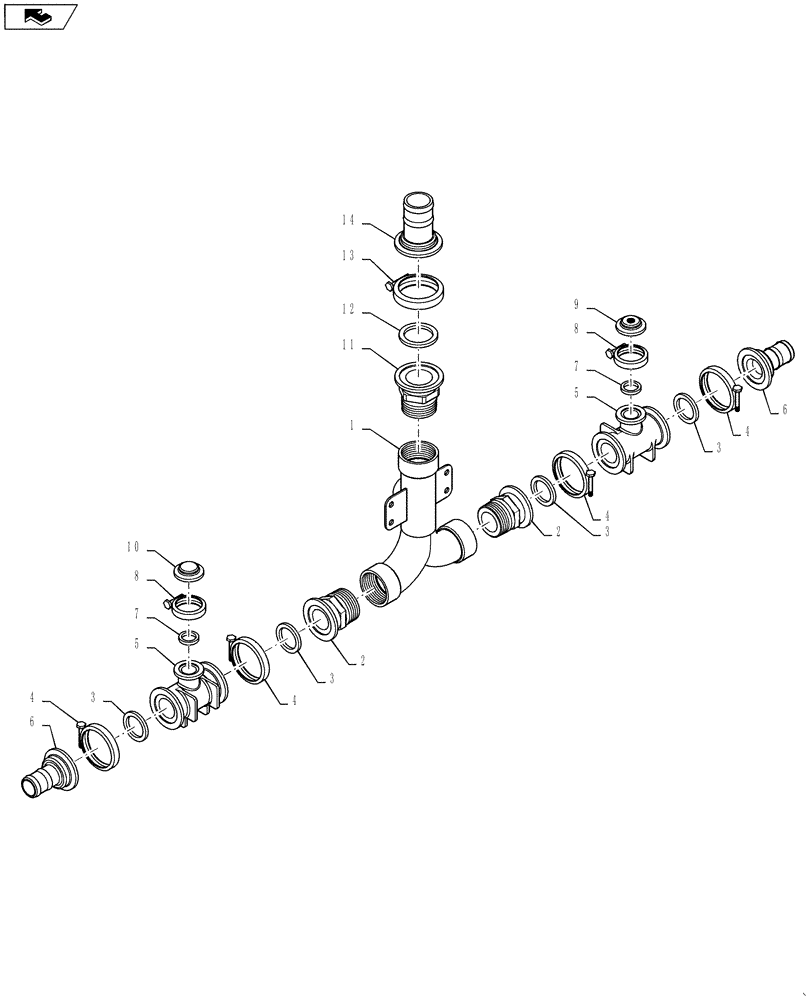

Запчасти Case IH 3330 (75.120.46) - MANIFOLD GROUP, 5 AND 6 SECTION (75) - SOIL PREPARATION

1

BN319213

MANIFOLD,2" Female NPT x 2" Female NPT x 2" Female NPT, Poly

3 WAY

1шт.

2

BN303185

ADAPTER,2" Flange x 2" Male NPT, Poly

2" Flange x 2" NPT

2шт.

3

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

4шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

4шт.

5

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

2шт.

6

434039A1

FITTING,2" Flange x 1-1/2" Hose Barb

2" Manifold x 1-1/2" Hose Barb, Poly

2шт.

7

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

2шт.

8

BN303203

CLAMP,1" Flange

1” Flange Manifold

2шт.

9

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

10

BN306897

PLUG,1" Flange, Poly

1" Flange, Poly

1шт.

11

BN314241

MANIFOLD,2" Full Port Flange x 2" Male NPT, Poly

2" MPT x 2" Flange, Poly

1шт.

12

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

13

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

14

BN318600

FITTING,2" Full Flange x 2" Hose Barb, Poly

2" Full Flange X 2" Hose Barb, Poly

1шт.
