Запчасти Case IH 3330 (75.120.43) - BOOM PLUMBING GROUP, 5 SECTION 90’ (75) - SOIL PREPARATION

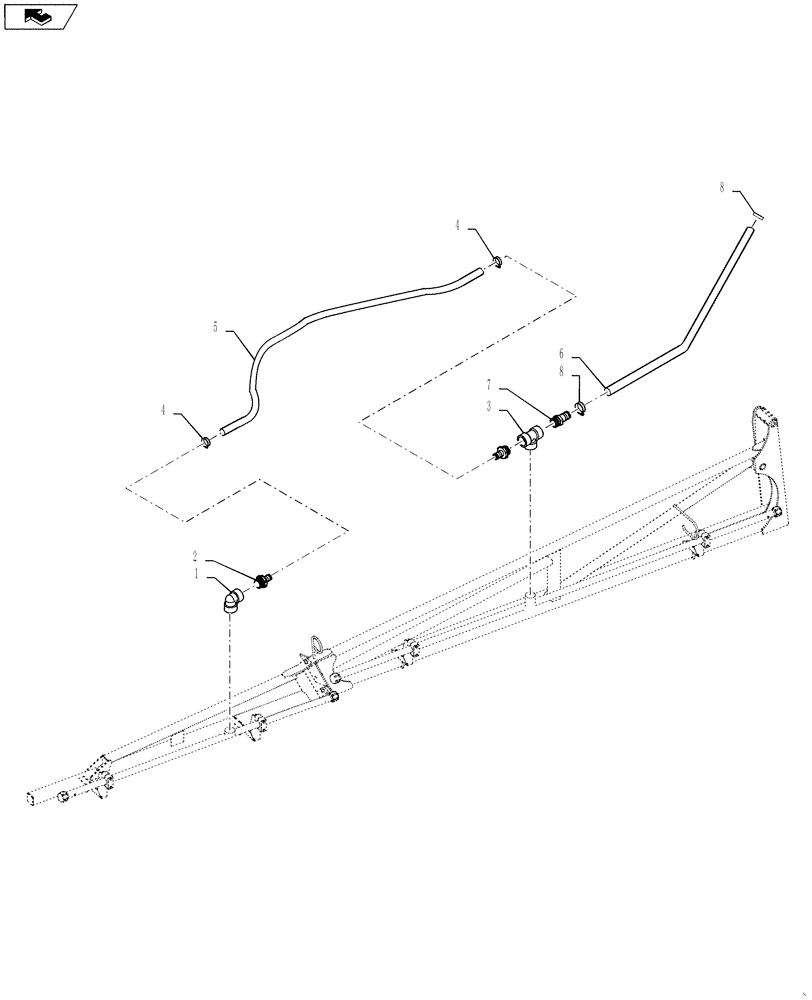

Схема запчастей Case IH 3330 - (75.120.43) - BOOM PLUMBING GROUP, 5 SECTION 90’ (75) - SOIL PREPARATION
8
6
2
home
4
3
5
7
1
4
8

Артикул

Название

Примечание

Количество

1

BN313202

ELBOW

1-1/4" NPT, 90°, Poly

1шт.

2

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

2шт.

3

BN73662

TEE

1-1/4", Poly

1шт.

4

BN310447

HOSE CLAMP

#20, Stainless Steel

2шт.

5

BN321636

HOSE,1.00" ID x 78.00"

EPDM

1шт.

6

87383454

HOSE,80.00 mm

1шт.

Order bulk 342228A1

1шт.

7

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

8

BN320156

HOSE CLAMP

#24, Stainless Steel

2шт.

Выбрано товаров: 9
