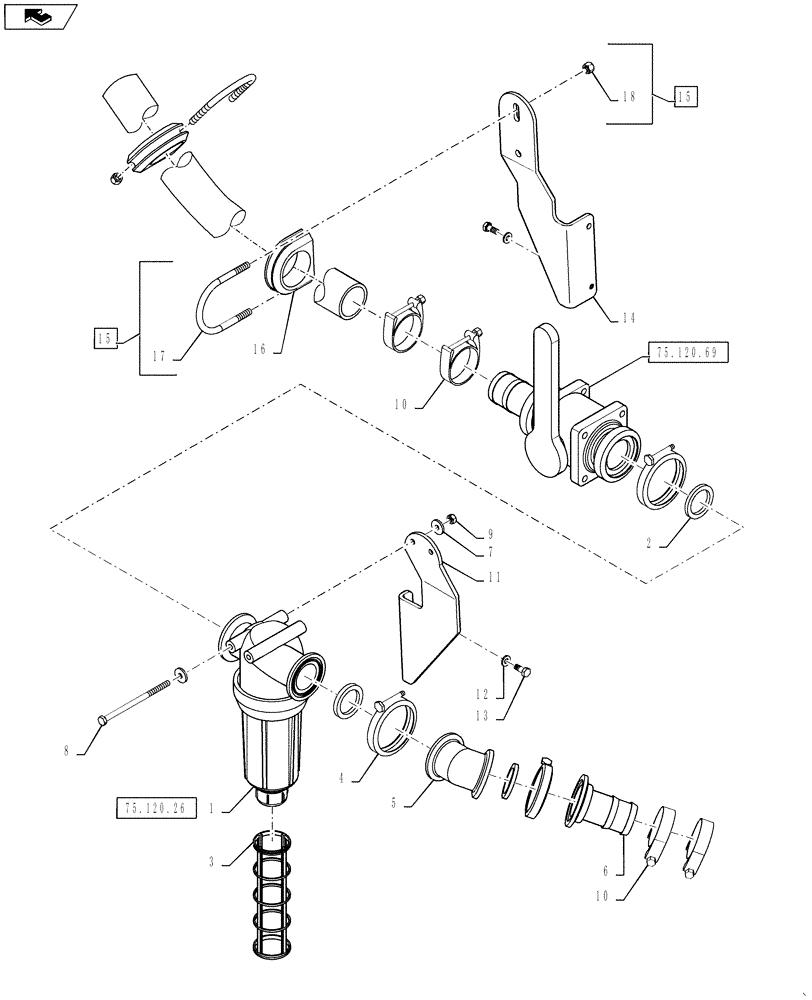

Запчасти Case IH 3330 (75.120.40[02]) - THROTTLE VALVE, STRAINER PLUMBING, STANDARD FLOW (75) - SOIL PREPARATION

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

Refer to 75.120.26 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

6

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

7

BN300506

WASHER

M8, Stainless Steel

4шт.

8

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

9

86980514

LOCK NUT,Hex, M8, Cl 8, DOR

2шт.

10

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

11

87271470

BRACKET, SUPPORTING

Filter

1шт.

12

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

13

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

14

87575788

MOUNT

Valve

1шт.

15

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

3шт.

16

BN320386

PIPE CLAMP

2" Pipe, Vinyl Insert, Part of Ref 15

3шт.

17

BN320385

U-BOLT

BOLT "U" 2.98 ID X 3/8-16, Part of Ref 15

3шт.

18

87343970

NUT,3/8"-16, G8, DOR

Part of Ref 15

6шт.
