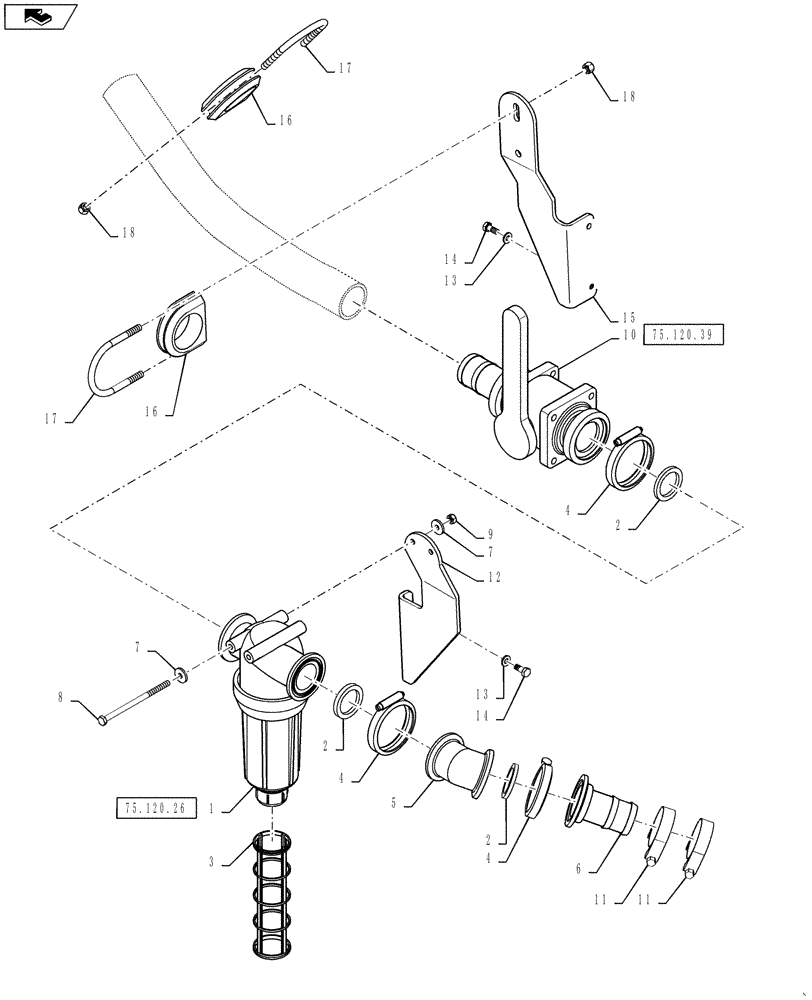

Запчасти Case IH 3330 (75.120.38) - THROTTLE VALVE, STRAINER PLUMBING (75) - SOIL PREPARATION

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

Refer to 75.120.26 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.

4

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

5

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

6

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

7

BN300506

WASHER

M8, Stainless Steel

4шт.

8

86980394

BOLT,Hex, M8 -1.25 x 140mm, Cl 8.8, DOR

2шт.

9

9991588

NUT,M8 x 1.25, Cl 8

2шт.

10

NSS

NOT SOLD SEPARAT

GROUP, LO

1шт.

Refer to 75.120.39

1шт.

11

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

12

87271470

BRACKET, SUPPORTING

FILTER

2шт.

13

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

4шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

87575788

MOUNT

VALVE

1шт.

16

343818A1

CLAMP

1 1/2" Pipe, Vinyl Insulated

2шт.

17

343819A1

U-BOLT

3/8"-16 x 2.42" id, 2.20" long

2шт.

18

87343970

NUT,3/8"-16, G8, DOR

4шт.
