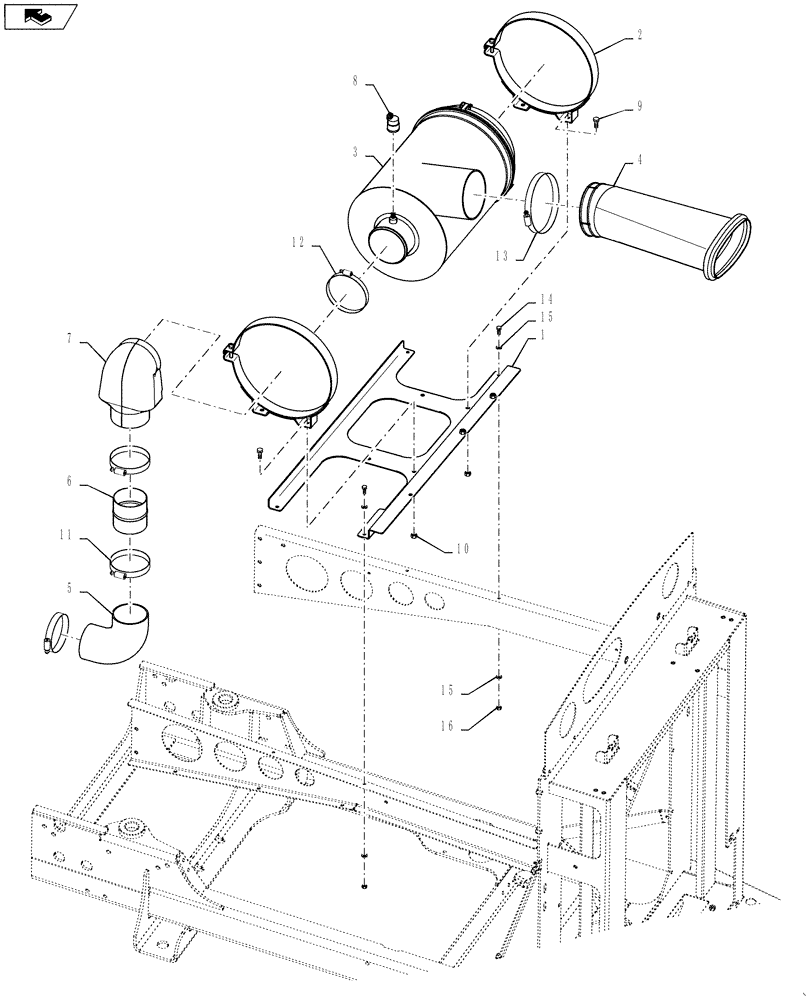

Запчасти Case IH 3330 (10.202.01) - AIR INTAKE SYSTEM (10) - ENGINE

1

87558354

MOUNTING PLATE

Air Cleaner

1шт.

2

87042086

CLAMP,330mm ID

2шт.

3

344323A1

AIR CLEANER

Complete

1шт.

See 10.202.02 For Service Parts

1шт.

4

87269993

DUCT

AIR CLEANER

1шт.

5

47626924

ELBOW

4" x 90°

1шт.

6

NSS

NOT SOLD SEPARAT

AIR INTAKE

1шт.

7

352790A1

ELBOW,101.6mm ID x 242mm L, EPDM

elbow, air intake

1шт.

8

279492A1

RESTRICTION SWITCH

AIR RESTRICTION

1шт.

9

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

4шт.

10

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

4шт.

11

87485012

CLAMP,3.75" - 4.62", Worm Gear

3.75/4.625 HD Worm, W/liner

1шт.

12

86637712

HOSE CLAMP,133mm - 156mm

1шт.

13

87485016

CLAMP,5.75" - 6.62", Worm Gear

6.625/5.75 W/LNR SST

1шт.

14

86980379

BOLT,Hex, M8 x 1.25 x 20mm, Cl 8.8

4шт.

15

87529315

WASHER,9mm ID x 17mm OD x 2mm Thk

9 x 17 x 2 mm, HDN, DOR

8шт.

16

9991588

NUT,M8 x 1.25, Cl 8

4шт.

17

L124635

HOSE CLAMP

2шт.
