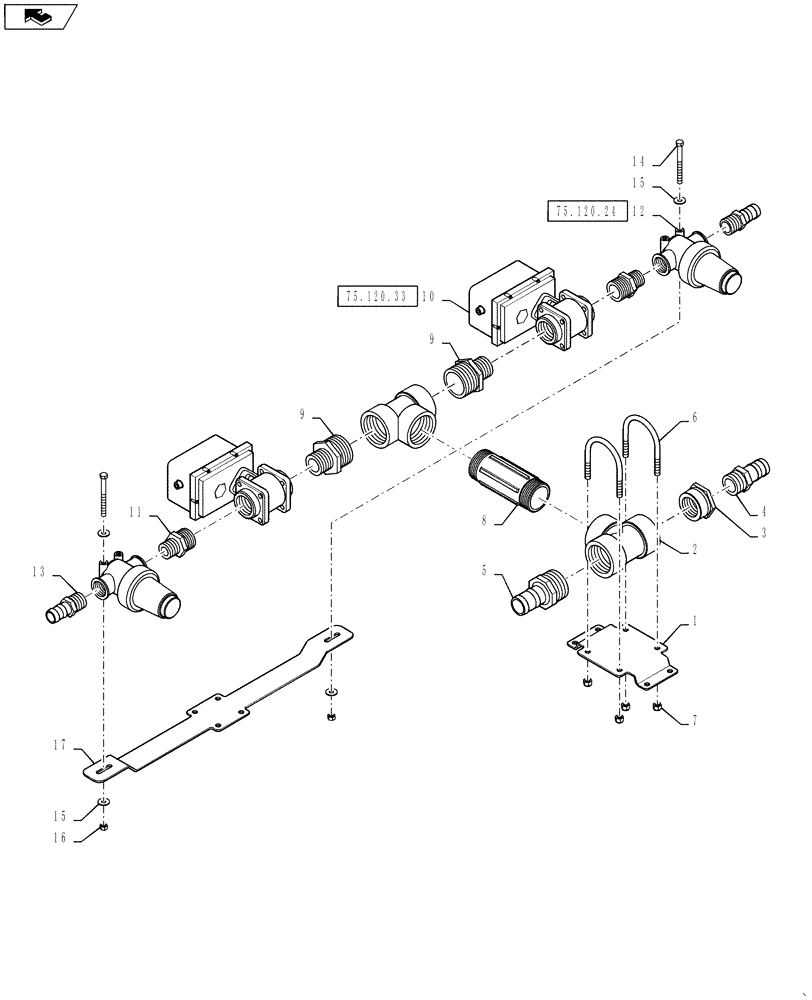

Запчасти Case IH 3330 (75.120.35) - VALVE PLUMBING GROUP, 6 SECTION, INNER BOOM, 2 STRAINER (75) - SOIL PREPARATION

1

BN323107

BRACKET

5 SEC, T-SUPPORT

1шт.

2

BN73779

TEE,2" Poly Tee

2" Poly Pipe

2шт.

3

BN73755

BUSHING,2" Male NPT x 1-1/4" Female NPT, Poly

reducer 2 x 1.25

1шт.

4

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

6

BN320385

U-BOLT

BOLT "U" 2.98 ID X 3/8-16

2шт.

7

BN50759

LOCK NUT,3/8"-16, Nylon, Stainless

4шт.

8

BN73790

LUBE NIPPLE

2" NPT X 6" POLY

1шт.

9

BN317158

NIPPLE,2" Male NPT x 1-1/4" Male NPT

2" x 1 1/4" Reducer

2шт.

10

87268179

VALVE

1.25" Ball, Electric

2шт.

Refer to 75.120.33

1шт.

11

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

2шт.

12

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

2шт.

Refer to 75.120.24

1шт.

13

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

2шт.

14

BN320109

BOLT,5/16"-18 X 3.50", Stainless

2шт.

15

BN50142

WASHER,5/16", Stainless Steel

4шт.

16

BN55361

NUT,5/16"-18, Nylon, Stainless

2шт.

17

BN323106

BRACKET

5 SEC, 2 STRAINER

1шт.
