Запчасти Case IH 3330 (75.120.32) - VALVE PLUMBING GROUP, 5 SECTION, CENTER (75) - SOIL PREPARATION

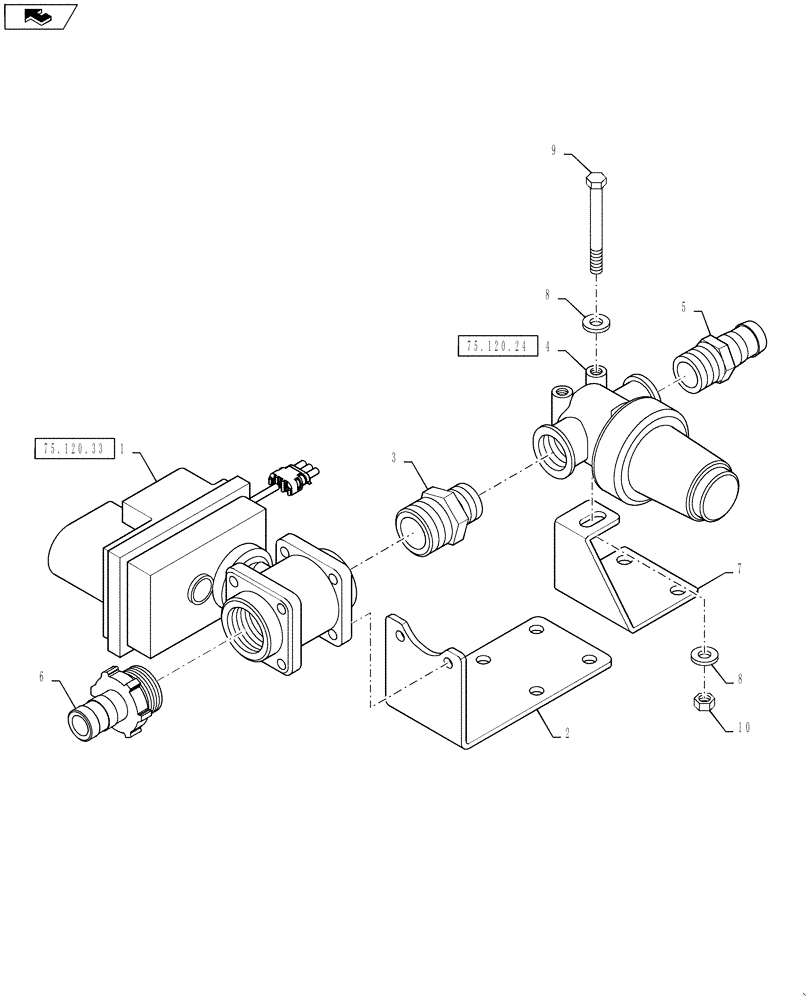

Схема запчастей Case IH 3330 - (75.120.32) - VALVE PLUMBING GROUP, 5 SECTION, CENTER (75) - SOIL PREPARATION
8
3
home
2
1
7
6
9
75.120.24
75.120.33
5
8
10
4

Артикул

Название

Примечание

Количество

1

87268179

VALVE

1.25" Ball, Electric

1шт.

Refer to 75.120.33

1шт.

2

BN319996

BRACKET

NPT BALL VALVE

1шт.

3

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

4

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

Refer to 75.120.24

1шт.

5

BN53476

FITTING,1" Male NPT x 1" Hose Barb, Poly

1" NPT x 1" Hose Barb, Poly

1шт.

6

BN73657

FITTING,1-1/4" Male NPT x 1" Hose Barb, Poly

1-1/4" NPT x 1" Hose Barb, Poly

1шт.

7

BN320060

BRACKET

STRAINER, CTR

1шт.

8

BN50142

WASHER,5/16", Stainless Steel

2шт.

9

BN320109

BOLT,5/16"-18 X 3.50", Stainless

1шт.

10

BN55361

NUT,5/16"-18, Nylon, Stainless

1шт.

Выбрано товаров: 12
