Запчасти Case IH 3330 (75.120.31) - VALVE PLUMBING GROUP, 5 & 6 SECTION (75) - SOIL PREPARATION

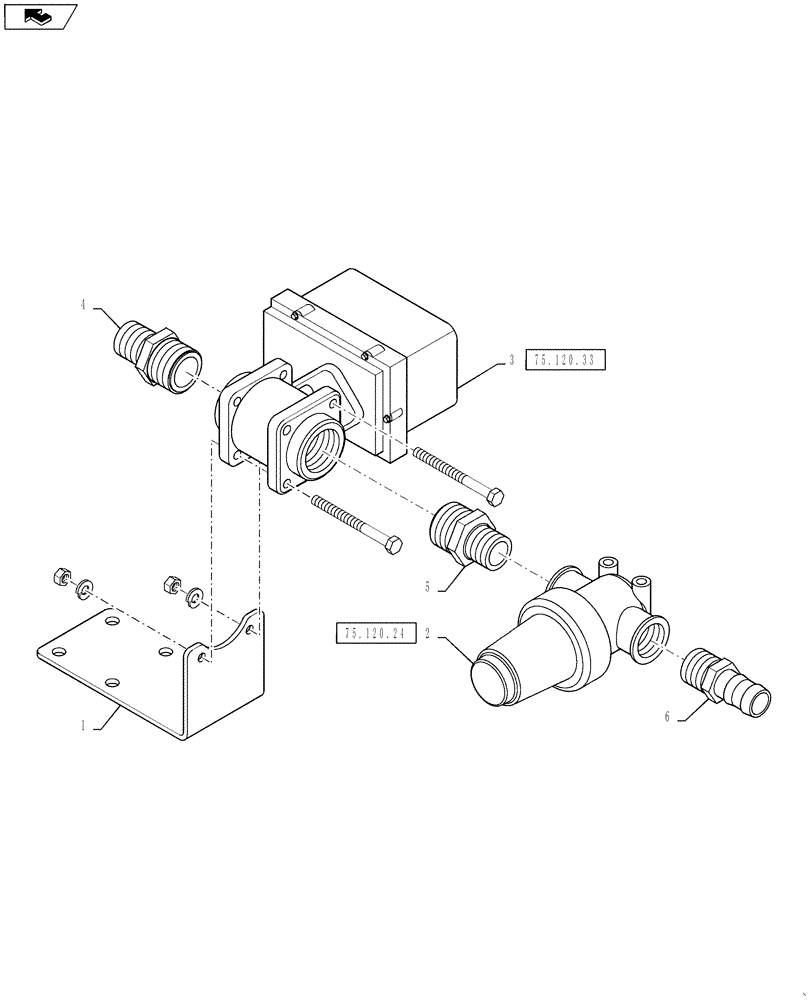

Схема запчастей Case IH 3330 - (75.120.31) - VALVE PLUMBING GROUP, 5 & 6 SECTION (75) - SOIL PREPARATION
75.120.33
75.120.24
home
2
6
4
5
3
1

Артикул

Название

Примечание

Количество

1

BN319996

BRACKET

NPT BALL VALVE

1шт.

2

BN320072

FILTER STRAINER

1" NPT, 50 Mesh, Poly

1шт.

Refer to 75.120.24

1шт.

3

87268179

VALVE

1.25" Ball, Electric

1шт.

Refer to 75.120.33

1шт.

4

87743696

FITTING

1-1/4" NPT X 1-1/4" Hose Barb, Poly

1шт.

5

BN73656

NIPPLE,1-1/4" Male NPT x 1" Male NPT, Poly

1-1/4" NPT x 1" NPT, Poly

1шт.

6

87744535

FITTING

1" NPT x 1-1/4" Hose Barb, Poly

1шт.
