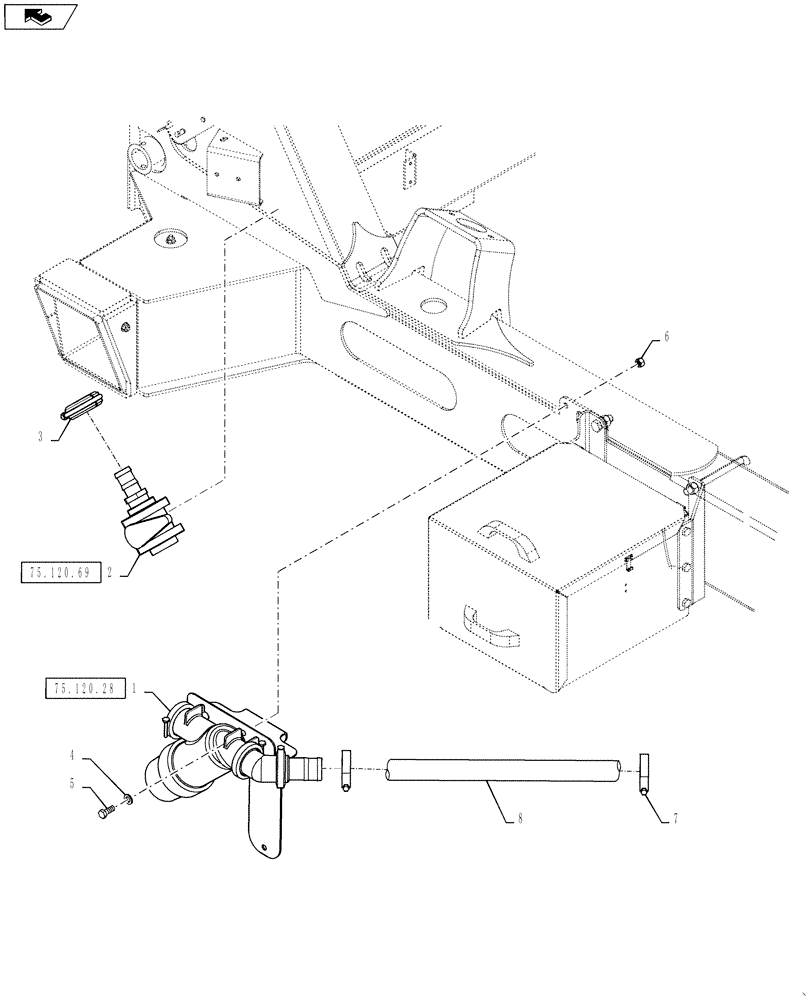

Запчасти Case IH 3330 (75.120.27) - STRAINER PLUMBING MOUNT GROUP (75) - SOIL PREPARATION

1

87267536

STRAINER ASSY.

Plumbing Group

1шт.

Refer to 75.120.28

1шт.

2

NSS

NOT SOLD SEPARAT

THROTTLE VALVE

1шт.

Refer to 75.120.69

1шт.

3

BN320384

U-BOLT

BOLT "U" Clamp, 2" Pipe

1шт.

4

86981496

WASHER,13.3mm ID x 24.5mm OD x 3mm Thk

1шт.

5

86980420

BOLT,Hex, M12 x 1.75 x 30mm, Cl 8.8, Full Thd

2шт.

6

100038

NUT,M12 x 1.75, Cl 8

2шт.

7

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

2шт.

8

BN68377

HOSE

2" EPDM x 50"

1шт.
