(75.120.25) - STRAINER PLUMBING GROUP, LO-FLOW

Запчасти Case IH 3330 (75.120.25) - STRAINER PLUMBING GROUP, LO-FLOW (75) - SOIL PREPARATION

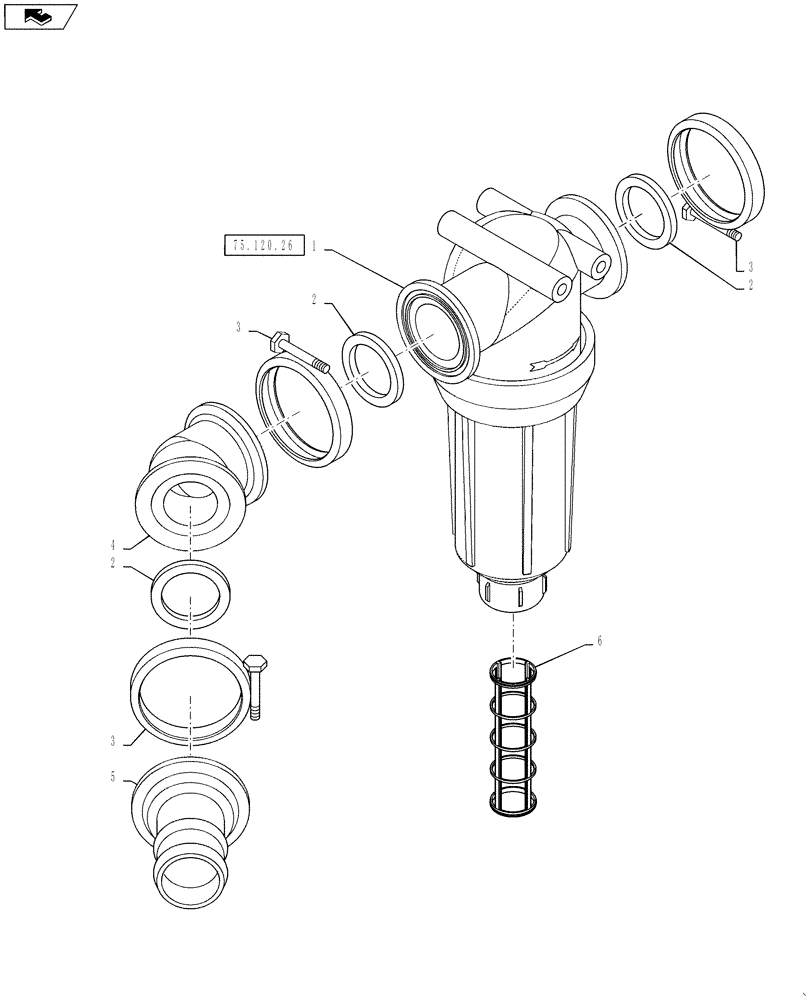

Схема запчастей Case IH 3330 - (75.120.25) - STRAINER PLUMBING GROUP, LO-FLOW (75) - SOIL PREPARATION
3
2
75.120.26
2
3
5
home
3
4
1
6
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

87265489

FILTER STRAINER

Strainer, 2" FLS

1шт.

Refer to 75.120.26 For Service Parts

1шт.

2

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

3шт.

3

BN303199

CLAMP,2" Flange

2" Standard Flange

3шт.

4

87265590

COUPLING,2" x 2" 45 Degree Flange

45º, 2" Flange, Poly

1шт.

5

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

6

87268604

SCREEN,16 Mesh, SST, Gray

16 Mesh, SS, Gray

1шт.
