Запчасти Case IH 3330 (75.120.24) - STRAINER, 1" NPT 50M POLY (75) - SOIL PREPARATION

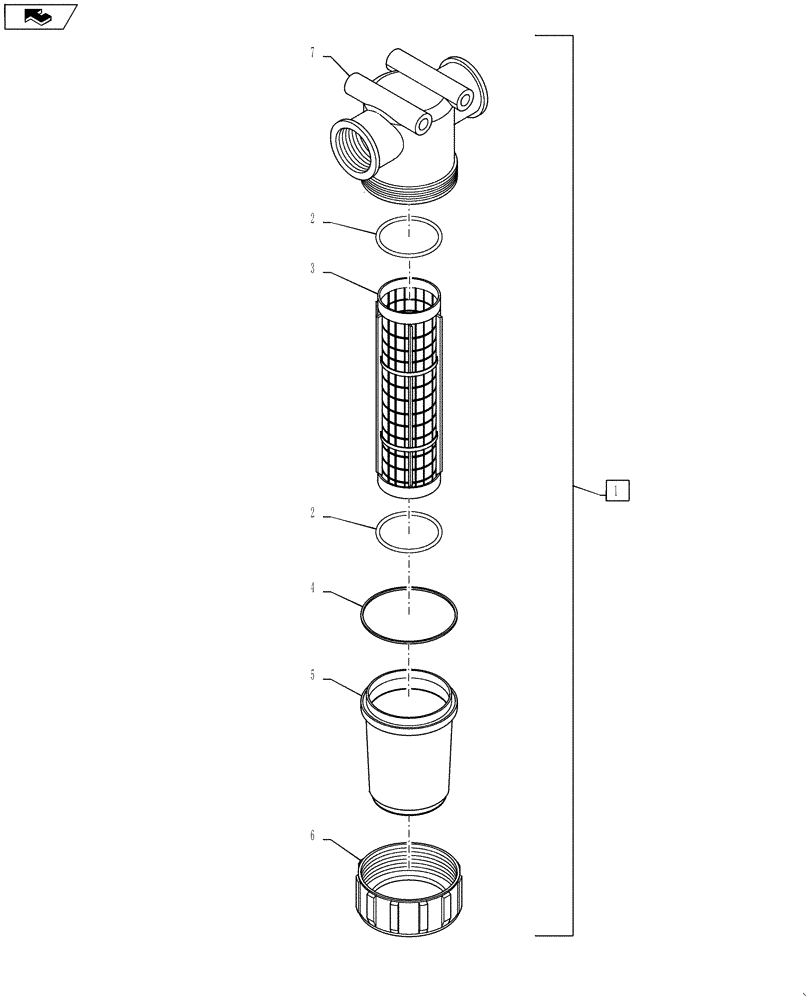

Схема запчастей Case IH 3330 - (75.120.24) - STRAINER, 1" NPT 50M POLY (75) - SOIL PREPARATION
7
6
4
3
2
home
5
1
2

Артикул

Название

Примечание

Количество

1

BN320072

FILTER STRAINER

1" NPT 50 Mesh, Poly

1шт.

2

87270125

GASKET

STRAINER GASKET

2шт.

3

87270126

SCREEN,1", 50 Mesh

50 M

1шт.

3

87272055

FILTER,80 Mesh

80 Mesh, Stainless Steel, Optional, Not Shown, Used When Aim Command Is Installed, 5 Are Required For 5 Section Booms, 6 Are Required For 6 Section Booms, And 1 Is Required For 7 Section Booms

1шт.

4

87270127

GASKET

BODY ARAG

1шт.

5

87270128

BODY

STRAINER

1шт.

6

87270129

NUT

Arag strainer

1шт.

7

87270124

HEAD

strainer, Arag

1шт.

Выбрано товаров: 8
