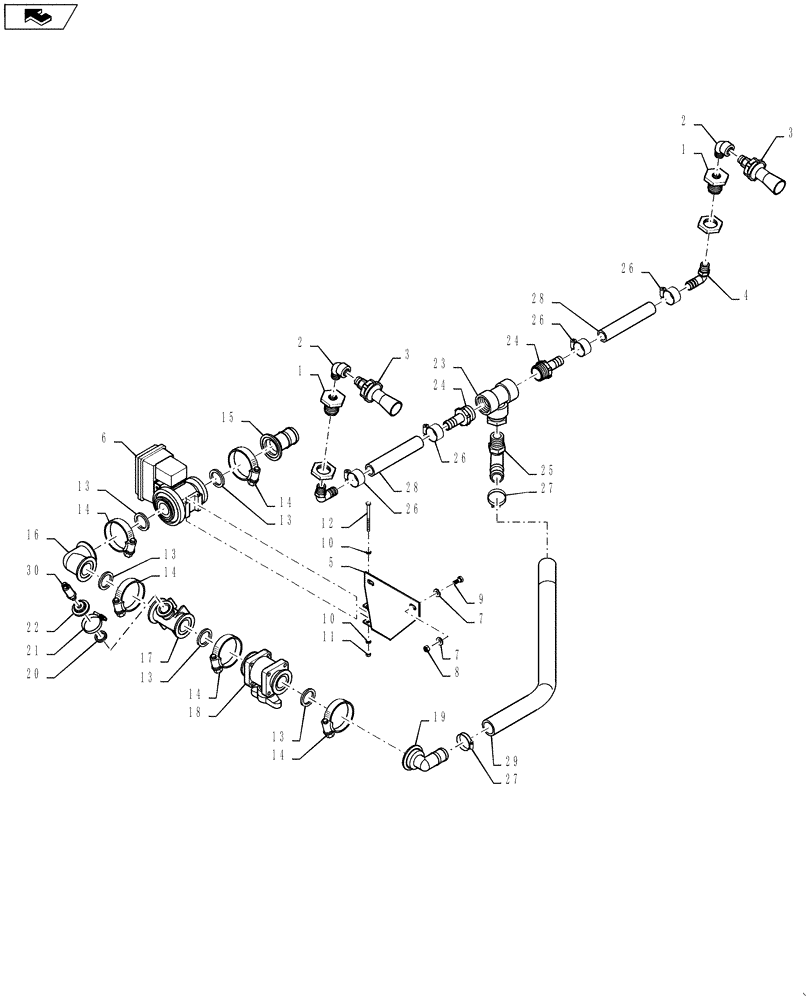

Запчасти Case IH 3330 (75.120.22) - SPARGE PLUMBING (75) - SOIL PREPARATION

1

406148A1

FITTING

bulkhead 3/4" dfpt c/w epdm gasket

2шт.

2

BN73566

ELBOW,3/4" Male NPT x 3/4" Female NPT, Poly

3/4" MPT x 3/4" FPT, Poly

2шт.

3

BN304248

AGITATOR

Tank Mixing

2шт.

4

134271C2

ELBOW,ELBOW, 90

3/4" NPT x 1" Hose Barb, Poly

2шт.

5

87270416

MOUNTING PLATE

Sparge Valve

1шт.

6

BN324054

VALVE,2" Full Port Flange x 2" Full Port Flange

1-1/2" B, Electric

1шт.

7

87529312

WASHER,11mm ID x 24mm OD x 3mm Thk

4шт.

8

86980515

NUT,Hex, M10 x 1.5, Cl 8.8, DOR

2шт.

9

86980400

BOLT,Hex, M10 x 25mm, Cl 8.8, Full Thd

2шт.

10

87529314

WASHER,6.6mm ID x 12.5mm OD x 2mm Thk

6.6 x 12.5 x 2 mm, HDN, DOR

4шт.

11

353308

NUT,M6 x 1.0, Cl 8

2шт.

12

86980369

BOLT,Hex, M6 x 80, Cl 8.8

M6 1 x 80, HH, 8.8, DOR

2шт.

13

BN303204

GASKET,1-1/2" EPDM Gasket

2" Flange, EPDM

5шт.

14

BN303199

CLAMP,2" Flange

2" Standard Flange

5шт.

15

405780A1

FITTING,2" Flange x 2" Hose Barb

2" Flange x 2" Hose Barb, Poly

1шт.

16

405782A1

COUPLING,2" x 2" 90 Degree Short Flange

poly 90º 2" flange x 2" flange coupling, short

1шт.

17

BN303191

TEE,2" Flange x 2" Flange x 1" Flange, Poly

2" Flange x 2" Flange x 1" Flange, Poly

1шт.

18

BN304328

VALVE,2" FP Valve w/C-Flng & T Handle

BALL, 2.0FLB, W/T-HNDL

1шт.

19

BN304321

FITTING,2" Flange x 1-1/2" 90 Degree Hose Barb Elbow

2" Flange x 1 1/2" Hose Barb, Poly

1шт.

20

408350A1

MANIFOLD GASKET,1" EPDM Manifold Gasket

1" x 7/32" thick

1шт.

21

BN303203

CLAMP,1" Flange

1” Flange Manifold

1шт.

22

405793A1

PLUG,1" Flange Plug with 1/4" FPT

1" Manifold x 1/4" FPT, Poly

1шт.

23

BN73714

TEE,1-1/2" Female NPT x 1-1/2" Female NPT x 1-1/2" Female NPT, Poly

1-1/2" NPT, Poly

1шт.

24

BN304513

PIPE FITTING,1-1/2" Male Thread x 1" Hose Barb

STR, 1.5MP 1.0HB, PP

2шт.

25

BN73723

ELBOW,90 Degree Elbow, 1-1/2" Male NPT x 1-1/2" Hose Barb, Poly

1-1/2" NPT x 1-1/2" Hose Barb, Poly

1шт.

26

BN75990

HOSE CLAMP

#16, Stainless Steel

4шт.

27

BN310448

HOSE CLAMP

#28, Stainless Steel

2шт.

28

BN53479

HOSE,1.00" ID BULK

EPDM Discharge

1шт.

29

BN53842

HOSE,38.10 mm ID Bulk

Discharge

1шт.

30

87266753

SENSOR

Sparge Pressure Transducer

1шт.
