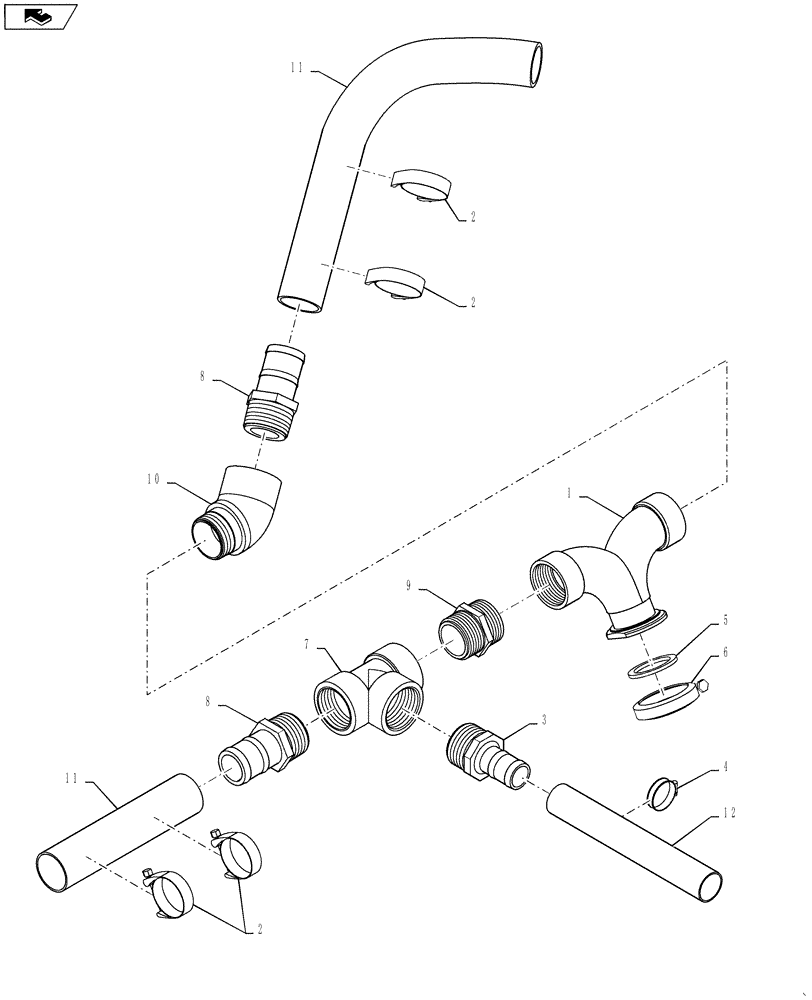

Запчасти Case IH 3330 (75.120.20) - PUMP PLUMBING (75) - SOIL PREPARATION

1

87265587

MANIFOLD

Y, PRODUCT PLMB

1шт.

2

BN2403358

CLAMP,50.8mm - 63.5mm

T-Bolt Band 2 1/2"

4шт.

3

BN305163

FITTING,2" - 11-1/2 Male NPT x 1-1/2" Hose Barb, Poly

2" NPT x 1.5" Hose Barb

1шт.

4

BN310448

HOSE CLAMP

#28, Stainless Steel

1шт.

5

BN313772

GASKET,2" Full Port, EPDM

2" Flange, EPDM

1шт.

6

BN313773

CLAMP,2" Full Port

2" Flange

1шт.

7

BN73779

TEE,2" Poly Tee

2" Poly Pipe

1шт.

8

BN73781

FITTING,2" Male NPT x 2" Hose Barb, Poly

2" NPT x 2" Hose Barb

2шт.

9

BN73783

NIPPLE

2" NPT Short Poly

1шт.

10

BN73793

ELBOW,45 Degree Elbow, 2" Female NPT x 2" Female NPT, Poly

45, 2.0MP 2.0FP, PP

1шт.

11

BN29564

HOSE

2" Bulk EPDM Suction

7шт.

12

BN53621

HOSE,1.50" ID BULK

Suction, EPDM

4шт.
